Custom 15-Piece Viton-Sealed Inflatable Connector for SF6 Gas Systems with 20 MPa Pressure Rating

  • Custom 15-Piece Viton-Sealed Inflatable Connector for SF6 Gas Systems with 20 MPa Pressure Rating
Place of Origin Shanghai
Brand Name KSTONE
Certification ISO9000
Model Number KSCQ-15
Minimum Order Quantity 10
Price $2000-$100000
Packaging Details Carton / Wooden Box
Delivery Time 7-10 work days
Payment Terms T/T
Supply Ability 1000
Product Details
Highlight

Custom sf6 gas management

,

sf6 gas management Connector

,

gas inflation system Connector
Leave a Message
Product Description

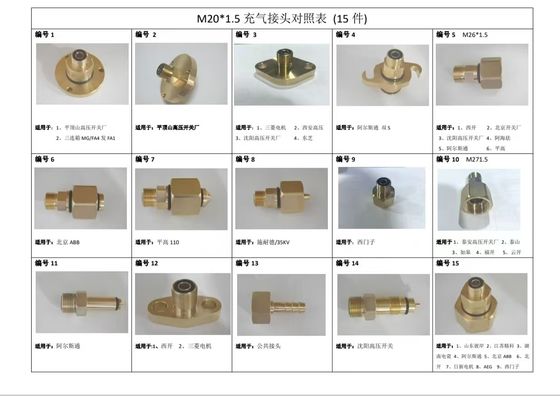

Custom SF6 Gas Management Inflation System Connector 15 Unit, Inflatable Connector
Product Overview

This 15-unit connector KSCQ-15 ensemble offers modular solutions for industrial gas networks, engineered to integrate with premium OEM brands: ABB, Schneider Electric, Sie-mens, Alstom Grid, and Mitsubishi Electric. Featuring pressure-optimized designs with Viton®-sealed interfaces, the kit includes straight/elbow/tee connectors, adapters, and spare seals for rapid installation in complex piping systems. Customization options cover material grades, thread standards, and high-pressure ratings up to 20 MPa.

Configuration Matrix
Component Type Qty Specifications
Straight Connectors 5 DN10-DN20, 304 stainless steel
90° Elbow Connectors 4 DN15-DN25, 10MPa pressure rating
Tee Junction Connectors 3 DN12-DN20, leak-proof design
Threaded/Quick Adapters 2 NPT/BSP convertible, M20×1.5 metric
Sealing Kit 1 Spare Viton® O-rings & NBR gaskets
OEM Compatibility
Manufacturer Equipment Applications
ABB GIS switchgear, power transformers
Schneider Electric Medium-voltage switchgear
Sie-mens AG Power distribution systems
Alstom Grid High-voltage substation components
Mitsubishi Electric Switchyard control equipment
Technical Specifications
Parameter Standard Specs Custom Options
Material 304 stainless steel 316 SS / brass C36000 / PTFE-lined
Threads Metric M20×1.5 NPT / BSPP / BSPT / DIN 2999
Pressure Rating 10 MPa Up to 20 MPa (high-pressure)
Temp Range -20°C to +80°C -40°C to +120°C (special coating)
Leak Test Bubble test @ 1.5x working pressure Helium mass spec. (1×10⁻⁹ mbar*L/s)
Custom Engineering Options
  • Material Options: Corrosion-resistant alloys for marine/chemical use
  • Thread Conversion: DIN 477 to JIS B0209, etc.
  • High-Pressure Design: Hydrogen/natural gas applications up to 20 MPa
