CGA540-G5/8 SF6 Accessories Gas Cylinder Adapter For Insulated Switchgear

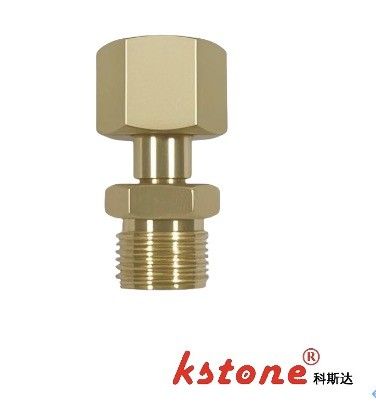

Large Image : CGA540-G5/8 SF6 Accessories Gas Cylinder Adapter For Insulated Switchgear

Product Details:

Place of Origin:	Shanghai
Brand Name:	KSTONE
Certification:	ISO9000
Model Number:	CGA540 To G5/8

Payment & Shipping Terms:

Minimum Order Quantity:	10
Price:	$2000-$100000
Packaging Details:	Carton / Wooden Box
Delivery Time:	7-10 work days
Payment Terms:	T/T
Supply Ability:	1000

Contact Now

Detailed Product Description

Efficiency:	High Efficiency	Product Type:	Accessories
Maintenance:	Low Maintenance	Application:	SF6 Gas Insulated Switchgear
Safety:	Ensures Safety In SF6 Gas Handling	Installation:	Easy To Install
Compatibility:	Compatible With SF6 Gas Insulated Switchgear	Size:	Standard
Material:	Stainless Steel	Operation:	Simple To Operate
Durability:	Highly Durable	Function:	Connect And Control SF6 Gas
Highlight:	Insulated SF6 Accessories , SF6 Accessories Cylinder Adapter , CGA540 Gas Cylinder Adapter

Gas cylinder adapter, CGA540 to G5/8

Product Profile

This industrial adapter enables seamless connection between CGA540-standard gas cylinders and G5/8 metric threaded systems. Engineered for leak-resistant performance, it supports high-pressure applications up to 3000 psi (20.7 MPa) in manufacturing, laboratories, and energy sectors. Customization services are available for diverse thread standards (e.g., DIN, BSP) and material requirements.

Technical Specifications Table

Parameter	Specification
Model	CGA540-G58-ADPT
Thread Configuration	Inlet: CGA540 (US standard) Outlet: G5/8 (ISO 7-1)
Material Options	316 stainless steel / brass (lead-free)
Pressure Rating	3000 psi (20.7 MPa) maximum
Temperature Range	-40°C to +120°C
Leak Test Standard	Helium mass spectrometer @ 1x10⁻⁹ mbar·L/s
Surface Treatment	Electropolished (SS) / chrome-plated (brass)
Customization Scope	Thread conversion, material grade, anti-corrosion coating

Customization Capabilities

Thread Adaptation: Convert between CGA, DIN 477, BSPP, BSPT, and other international thread standards
Material Engineering: Select from 316L SS, 304 SS, brass (C36000), or alloy steel per application needs
Special Coatings: PTFE lining, passivation, or nickel plating for corrosive environments

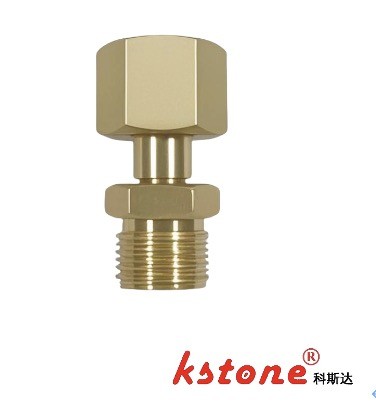

CGA540-G5/8 SF6 Accessories Gas Cylinder Adapter For Insulated Switchgear 0
