Gas Propane Cylinder Connector LP Refill Adapter CGA540 Industrial Fittings

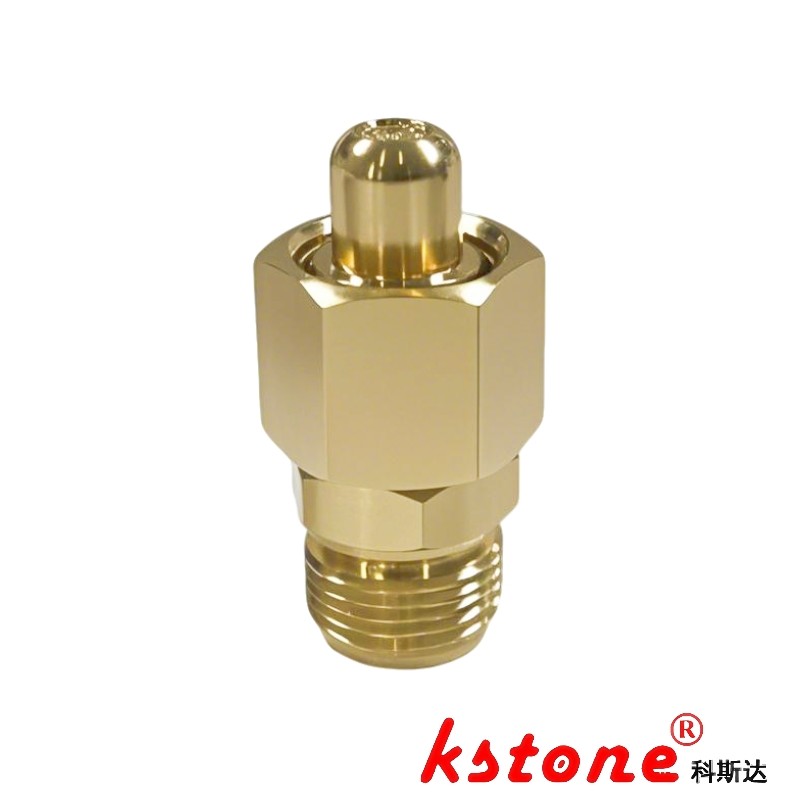

Large Image : Gas Propane Cylinder Connector LP Refill Adapter CGA540 Industrial Fittings

Product Details:

Place of Origin:	Shanghai
Brand Name:	KSTONE
Certification:	ISO9001
Model Number:	CGA540 To G5/8

Payment & Shipping Terms:

Minimum Order Quantity:	10
Price:	$50
Packaging Details:	Carton / Wooden Box
Delivery Time:	10 work days
Payment Terms:	T/T
Supply Ability:	1000

Contact Now

Detailed Product Description

Product Type:	Accessories	Maintenance:	NO Maintenance
Application:	SF6 Gas Insulated Switchgear	Safety:	Ensures Safety In SF6 Gas Handling
Installation:	Easy To Install	Compatibility:	Compatible With SF6 Gas Insulated Switchgear
Size:	CGA540 To G5/8	Material:	Brass
Operation:	Simple To Operate	Durability:	Highly Durable
Function:	Connect And Control SF6 Gas	Usage:	Gas Cylinder Adapter CGA540 To G5/8
Highlight:	LP propane cylinder connector , CGA540 propane cylinder connector , CGA540 lp refill adapter

Gas Cylinder Adapter CGA540 to G5/8 - Customizable Industrial Fittings

Product Overview

This industrial-grade adapter enables secure connection between CGA540-valved gas cylinders and G5/8 threaded systems. Engineered for leak-proof performance, it supports high-pressure applications in manufacturing, laboratories, and energy sectors. Customization options are available for diverse thread configurations and material requirements.

Technical Specifications Table

Parameter	Specification
Model	CGA540-G5/8-ADPT
Thread Types	Inlet: CGA540 (US standard) Outlet: G5/8 (metric)
Material	Stainless steel 316 / brass (optional)
Pressure Rating	Up to 3000 psi (20.7 MPa)
Temperature Range	-40°C to +120°C
Leak Test Standard	Bubble test @ 1.5x working pressure
Surface Treatment	Passivated (SS) / nickel-plated (brass)
Customization Options	Thread conversion (e.g., DIN, BSP), material grade, anti-corrosion coating

Customization Services

Thread Adaptation: Convert between CGA, DIN, BSP, and other international standards
Material Selection: Choose from 316 stainless steel, brass, or alloy materials per application needs
Special Coatings: Anti-corrosive finishes for marine, chemical, or high-temperature environments

Gas Propane Cylinder Connector LP Refill Adapter CGA540 Industrial Fittings 0
