Industrial SF6 Accessories Gas Inflation Pressure Management System [KSCQ-5G]

  • Industrial SF6 Accessories Gas Inflation Pressure Management System [KSCQ-5G]
Place of Origin Shanghai
Brand Name KSTONE
Certification ISO9000High-Precision SF6 Inflation System KSCQ-5G – Pressure Management Solution Operational Principle This precision-engineered kit enables controlled SF6 gas transfer from cylinders to GIS equipment via a pressure regulator, reinforced hose, and density
Model Number KSCQ-5G
Minimum Order Quantity 10
Price $1500-$1600
Packaging Details Carton / Wooden Box
Delivery Time 10 work days
Payment Terms T/T
Supply Ability 1000

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Highlight

Management SF6 Accessories

,

Industrial SF6 Accessories

,

Industrial sf6 gas pressure gauge
Leave a Message
Product Description
High-Precision SF6 Inflation System KSCQ-5G – Pressure Management Solution

Operational Principle

This precision-engineered kit enables controlled SF6 gas transfer from cylinders to GIS equipment via a pressure regulator, reinforced hose, and density relay. Featuring a 0.25-class accuracy pressure gauge and selectable safety valves (5.5bar/9.8bar), it ensures precise pressure regulation and overpressure protection for industrial gas charging applications.

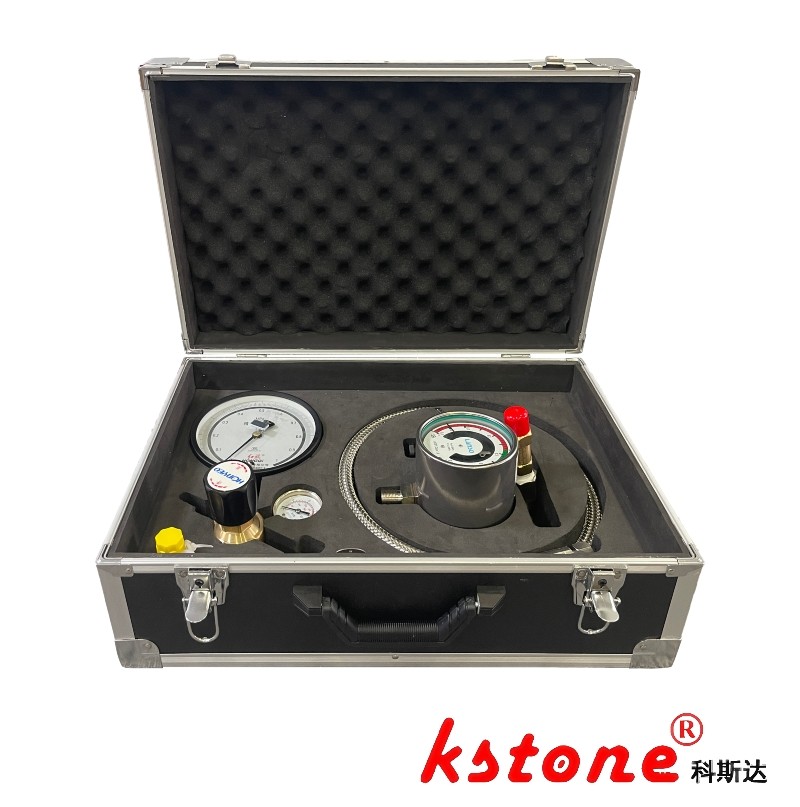

System Configuration

Component Specification
Adjustable Pressure Regulator 1 unit (0-10 bar output range)
High-Precision Pressure Gauge 0.25-class accuracy, 0-10 bar scale
Safety Relief Valve Selectable: 5.5bar (79.8psi) or 9.8bar (142psi)
DN8 Reinforced Inflation Hose 5m length, 15bar working pressure
SF6 Density Relay Auto shut-off at preset density levels
Impact-Resistant Case Foam-lined, 600×400×250mm dimensions

Technical Parameters Table

Parameter Standard Value
Model Code KSCQ-5G
Application Scope GIS system SF6 gas charging
Gauge Accuracy Class 0.25 (±0.025bar full-scale)
Safety Valve Options 5.5bar / 9.8bar (dual variants)
Hose Pressure  15bar (217.5psi) maximum
Operational Temperature -20°C to +60°C
Case Protection Level IP54 dust/water resistance

Safety & Performance Features

  • Dual-Layer Protection: Pressure regulator with integrated safety valve prevents overcharging
  • Industrial-Grade Components: Reinforced hose and corrosion-resistant fittings for longevity
  • Precision Measurement: 0.25-class gauge enables density control within ±1% tolerance

Industrial SF6 Accessories Gas Inflation Pressure Management System [KSCQ-5G] 0
