High Precision Pressure Gauge, Dry Air Inflation Kit, Density Relay, Safety Valve [KSCQ-5G]

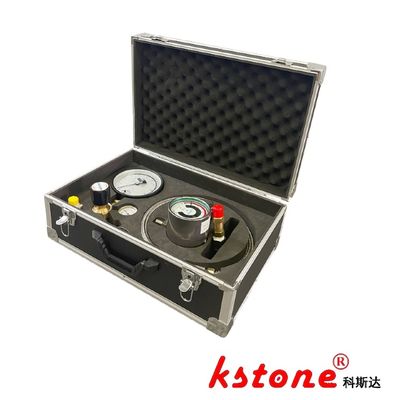

Large Image : High Precision Pressure Gauge, Dry Air Inflation Kit, Density Relay, Safety Valve [KSCQ-5G]

Product Details:

Place of Origin:	Shanghai
Brand Name:	KSTONE
Certification:	ISO9000
Model Number:	KSCQ-5G

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	$1600-$1700
Packaging Details:	carton or Wooden Box
Delivery Time:	10 work days
Payment Terms:	T/T
Supply Ability:	100

Contact Now

Detailed Product Description

Highlight:

Inflation SF6 Accessories

OEM SF6 Accessories

SF6 gas inflation system

High-Precision SF6 Inflation Kit KSCQ-5G – Pressure Regulation Solution

The best inflatable kit with the most complete configuration, including safety valves, high-precision pressure gauges, high-end pressure reducing valves, and imported rubber hoses......

Operational Overview

Environmentally friendly gas inflation device, compatible with Siemens Energy.

dry air inflation kit.

This precision-engineered kit enables controlled SF6 gas transfer from cylinders to GIS systems via a pressure regulator, reinforced hose, and density relay. Featuring a 0.25-class accuracy pressure gauge and selectable safety valves (5.5bar/9.8bar), it ensures precise pressure management and overpressure protection during industrial gas charging operations.

System Configuration

Component	Specification
Adjustable Pressure Regulator	1 unit (0-10 bar output range)
High-Precision Pressure Gauge	0.25-class accuracy, 0-10 bar scale
Safety Relief Valve	5.5bar (79.8psi) or 9.8bar (142psi)
DN8 Reinforced Inflation Hose	5m length, 15bar working pressure
SF6 Density Relay	Auto shut-off at preset density levels
Impact-Resistant Case	Foam-lined, 600×400×250mm dimensions

Technical Parameters

Parameter	Standard Value
Model Code	KSCQ-5G
Application	GIS system SF6 gas charging
Gauge Accuracy	0.25 class (±0.025bar F.S.)
Safety Valve Options	5.5bar / 9.8bar (dual types)
Hose Pressure Rating	15bar (217.5psi) max
Temperature Range	-20°C to +60°C
Case Protection	IP54 dust/water resistance

Key Features

Dual Safety Protection: Pressure regulator with integrated safety valve prevents overcharging
Industrial-Grade Build: Reinforced hose and corrosion-resistant fittings for long-term use
Precision Measurement: 0.25-class gauge ensures density control within ±1% tolerance
