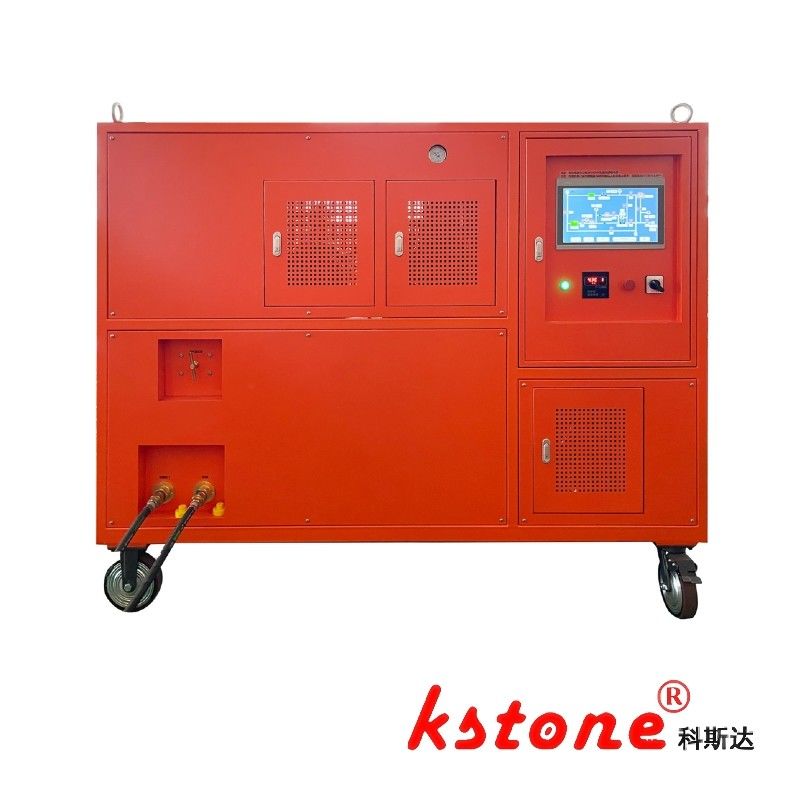

Large SF6 recovery device, SF6 circulation system

Large Image : Large SF6 recovery device, SF6 circulation system

Product Details:

Place of Origin:	Shanghai
Brand Name:	KSTONE
Certification:	ISO9000
Model Number:	KSLH-110Y/160-1200WZ

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	$80000-100000
Packaging Details:	Carton / Wooden Box
Delivery Time:	45 days
Payment Terms:	T/T
Supply Ability:	10 per year

Contact Now

Detailed Product Description

Frequency:	50/60Hz	Warranty:	1 Year
Storage Tank Capacity:	1200l	Voltage:	380V
Working Pressure:	5MPa	Application:	Gas Recovery
Vacuum Degree:	≤10Pa	Dimensions:	2500x1600x2000mm
Recovery Rate:	99.9%
Highlight:	GIL portable r134a recovery machine , Refrigerant portable r134a recovery machine , R134a refrigerant gas recovery system

KSLH-110Y/160-1200WZ Automatic SF6 Recycling System for GIS/GIL

Industry Leadership

As the drafting entity of China's DL/T1353-2024 technical standard for SF6 treatment systems, our solutions set industry benchmarks. SF6 recovery equipment is custom-engineered, with configurations tailored to client needs—including negative-pressure recycling, storage tank capacity, and fully automated operations.

Product Overview

The KSLH-110Y/160-1200WZ is a high-capacity automatic system designed for 550kV insulation pot withstand voltage testing. It integrates a 110m³/h main compressor, 160m³/h negative-pressure compressor, 63m³/h pipeline vacuum pump, and 1200L horizontal external liquid storage tank for efficient SF6 management in high-voltage applications.

Technical Specifications Table

Component	Specification
Main Compressor	110m³/h capacity
Negative-Pressure Compressor	160m³/h, 0.5MPa suction pressure
Pipeline Vacuum Pump	63m³/h, ultimate vacuum ≤5Pa
Liquid Storage Tank	1200L horizontal, carbon steel

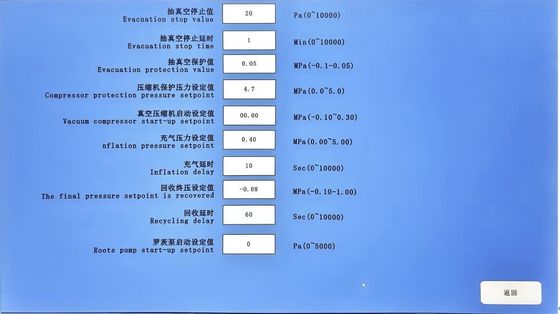

Control System	PLC-based full automation with HMI
Filtration System	0.1μm particle filter, 3ppm moisture trap
Power Supply	3Φ 380V 50Hz, 45kW total load

Customization Options

Compression Configurations: Oil-free vs. lubricated compressors
Storage Capacity: 500L to 2000L tank options
Functional Add-ons: Filtration dehydration , Gas moisture and purity testing (optional)
Mobility Options: Trailer-mounted

Compliance & Standards

Compliant with DL/T1353-2024 and IEC 62271-403
Designed for GIS/GIL systems up to 1100kV voltage class
Meets ISO 14001 environmental management standards
