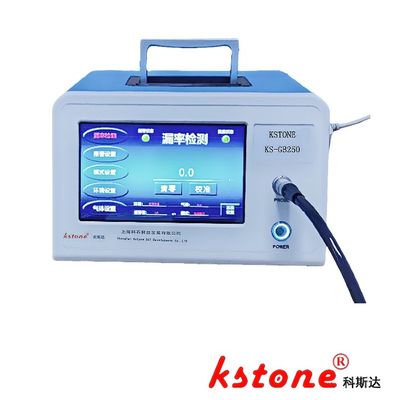

0.1ppm SF6 R22 Refrigerant Gas Leak Detector NDIR Sensor Touchscreen control

Large Image : 0.1ppm SF6 R22 Refrigerant Gas Leak Detector NDIR Sensor Touchscreen control

Product Details:

Place of Origin:	Shanghai
Brand Name:	KSTONE
Certification:	ISO9000
Model Number:	KS-GB250

Payment & Shipping Terms:

Minimum Order Quantity:	5
Price:	$2000-$100000
Packaging Details:	Carton / Wooden Box
Delivery Time:	7-10 work days
Payment Terms:	T/T
Supply Ability:	1000 per year

Contact Now

Detailed Product Description

Sensitivity:	0.1 Ppm	Storage Temperature:	-20°C To +60°C
Detection Range:	0-1000 Ppm	Data Storage:	Internal Memory For Up To 200 Measurements
Dimensions:	220 X 85 X 230 Mm	Response Time:	Less Than 1 Second
Power Supply:	4 AA Batteries Or AC/DC Adapter	Accuracy:	± 2% Of Full Scale
Measurement Principle:	Infrared Spectroscopy	Operating Temperature:	-20°C To +50°C
Highlight:	0.1ppm refrigerant gas leak detector , R22 refrigerant gas leak detector , R22 leak refrigerant detector

CH Refrigerant CO₂ NH₃ Leak Detector - NDIR Sensor, 0.1ppm Sensitivity - KS-GB250

Designed for multi-gas leak detection, the KS-GB250 employs a non-dispersive infrared (NDIR) sensor, offering robust anti-interference capability for precise measurements of SF6, R22, R410, R600, CO₂, NH₃, and more. Its embedded computer system ensures stability, while the sensor’s automatic calibration function minimizes maintenance. The detector features intuitive touch control, digital direct reading, and alarm capabilities with sound and color-changing visual alerts.

Key Features

Multi-Gas Compatibility:Supports 13+ refrigerants across four sensor types, ideal for diversified industrial applications.
Intelligent System:Embedded computer with auto-calibration ensures long-term accuracy without manual adjustment.
User-Friendly Interface:Touchscreen control, real-time flowmeter monitoring, and customizable alarm points for intuitive operation.
Data Management:Stores measurement records with time stamps, enabling direct printing or USB export for report generation.

Technical Parameters

Parameter	Details
Detection Principle	NDIR (non-dispersive infrared) sensor
Sensitivity	0.1ppm (gas concentration) / 0.1g/a (annual leakage rate)
Measurement Range	0-100g/a (annual rate) / 0-1000ppm (concentration)
Response Time	<1 second
Preheating Time	2 minutes
Repeatability	±1%
Detectable Gases	- LS-1: SF6, R22, R134a, R404, R407, R410, Hp-1, R1233ZD - LS-2: R600, R290 - LS-3: NH₃ - LS-4: CO₂
Display Units	g/a, mL/s, Pam³/s, ppm
Alarm Function	Sound alert with color-changing numerical display
Data Output	RJ45, printer, USB
Operating Conditions	Temperature: -20~50℃ Humidity: ≤90% RH (non-condensing)
Power Supply	AC85-240V, 50/60Hz
Dimensions & Weight	280×260×180mm (L×W×H), ~2.5kg
