[Smart-01b] Fluorinated Refrigerant Gas Leak Detector, Replacing Xp-1a

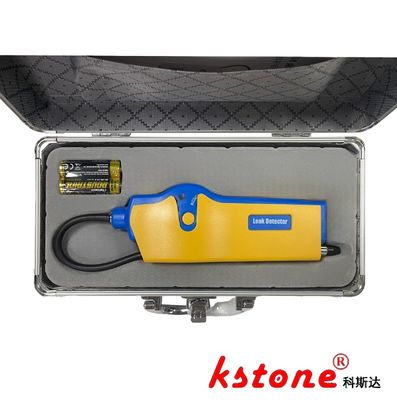

Large Image : [Smart-01b] Fluorinated Refrigerant Gas Leak Detector, Replacing Xp-1a

Product Details:

Place of Origin:	Shanghai
Brand Name:	KSTONE
Certification:	ISO9000
Model Number:	Smart-01b

Payment & Shipping Terms:

Minimum Order Quantity:	10
Price:	$100-120
Packaging Details:	Carton / Wooden Box
Delivery Time:	7-10 work days
Payment Terms:	T/T
Supply Ability:	1000

Contact Now

Detailed Product Description

Detection Gas:	SF6	Weight:	0.5 Kg
Operating Temperature:	0 To 50°C	Detection Principle:	Corona Discharge
Response Time:	Less Than 5 Second	Measurement Range:	3g/y
Dimensions:	175×55×34mm	Display:	LCD
Highlight:	SF6 combustible gas leak detector , Infrared combustible gas leak detector , SF6 ammonia leak detector

Smart-01b Fluorinated Refrigerant Gas Leak Detector, Leak Detector, Replacing Xp-1a

Product Overview

The Smart-01b is a cost-effective SF6 qualitative leak detector leveraging the corona discharge principle, engineered for efficient detection of all fluorinated refrigerants and SF6. With a rapid 5-second warm-up time, it enables immediate field deployment, while its compact 175×55×34mm design ensures portability. Powered by 2×AA batteries, the detector features a 305mm hose for extended reach and a sensor lifespan of approximately 20 hours for continuous use.

Technical Parameters

Parameter	Details
Detection Principle	Corona Discharge
Maximum Sensitivity	3g/year (SF6 leakage rate)
Warm-up Time	≤5 seconds
Compatible Gases	All fluorinated refrigerants, SF6
Operating Temperature	0–52°C
Humidity Resistance	≤95% RH (non-condensing)
Hose Length	305mm (standard)
Power Source	2×AA batteries
Sensor Lifespan	~20 hours (continuous operation)
Dimensions (L×W×H)	175×55×34mm

Key Features

Budget-Friendly Design:Ideal for cost-conscious users without sacrificing detection efficiency.
Rapid Activation:5-second warm-up minimizes downtime for immediate leak localization.
Wide Gas Compatibility:Suitable for all fluorinated refrigerants and SF6, enhancing versatility across applications.
Portable Form Factor:Lightweight construction and 1000mm hose enable on-site mobility and hard-to-reach detection.
