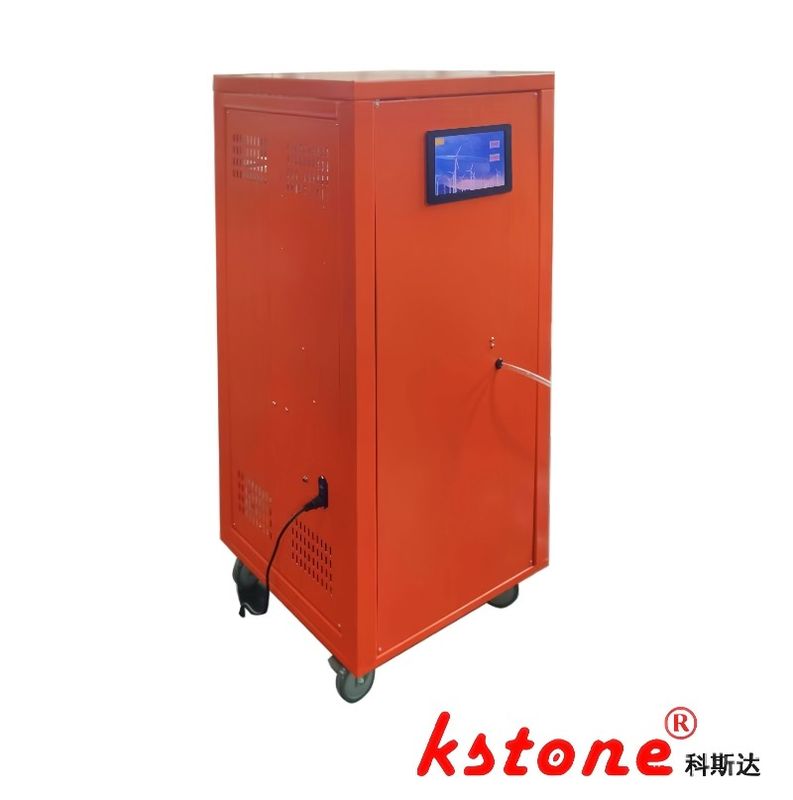

40Cfm Compressor Dry Air Equipment 5 Liter For Low moisture air

Large Image : 40Cfm Compressor Dry Air Equipment 5 Liter For Low moisture air

Product Details:

Place of Origin:	Shanghai
Brand Name:	KSTONE
Certification:	ISO9000
Model Number:	KS3000-80-cz4

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	$2000-$100000
Packaging Details:	Carton / Wooden Box
Delivery Time:	45 days
Payment Terms:	T/T
Supply Ability:	100

Contact Now

Detailed Product Description

Power Supply:	220V/50Hz	Auto Shut-Off:	Yes
Power Consumption:	750W	Operating Temperature:	5-35°C
Water Tank Capacity:	5 Liters	Dehumidifying Method:	Refrigeration
Air Flow Rate:	300m³/h	Humidity Control:	Digital Control
Highlight:	40Cfm Dry Air Equipment , 5 Liter Dry Air Equipment , nitrogen 40 cfm air dryer

Dry Air Production Equipment, Filtration Technology, 30ppm Moisture Rating, Natural Air Filtration & Drying System KS3000-80-cz4

The KS3000-80-cz4 is engineered to filter moisture and particulates from ambient air, generating dry air with a moisture content below 30ppm (v). The dry air flow rate is customizable to meet specific operational needs. This equipment serves as a reliable air source for air-insulated cabinets and can be used to flush gas-insulated cabinets as a substitute for high-purity nitrogen. Equipped with a vacuum pumping function, it allows for optional expansion of the vacuum pump capacity.

The system comprises a silent compressor, moisture filtration unit, drying activation module, pressure adjustment system, and exhaust piping. It also includes a vacuum pump, anti-reflux device, and integrated pipelines. An optional online micro-water testing sensor (model: KS3000-80-CZ4-WS) can be installed to monitor when activation is required. The equipment supports both fully automatic and manual operation modes based on user preferences.

Key Technical Parameters

Item	Technical Specification
Compressor Flow Rate	80L/min (optional)
Pressure Adjustment Range	0.1-6.0 Mpa (customizable low-pressure setpoints with fluctuation control)
Drying Activation Capacity	15m³ of qualified dry air per 30-minute regeneration cycle
Moisture Filtration Performance	Outlet moisture controlled at 30-50ppmv under 70% inlet humidity
Vacuum Pump Rate	15m³/h
Dimensions (L×W×H)	1200×800×1620 mm
Weight	≤150 kg
Power Supply	AC220V
Power Consumption	≤6 kW
Moisture Absorption per Activation	≥1.0 kg (at <50-60ppm moisture level)

Operational Highlights

Pressure Control Mechanism: Example setting: Low pressure at 0.12 Mpa with 0.02 Mpa fluctuation. The compressor stops at 0.14 Mpa and restarts at 0.12 Mpa.
Regeneration Process: When outlet gas micro-water values exceed standards, disconnect the outlet pipeline, open the gas valve, activate the drying system for 30 minutes to restore adsorbent efficiency.
