Custom Sf6 Gas Management Inflation System Connector 15 Unit, Inflatable Connector

Custom Sf6 Gas Management Inflation System Connector 15 Unit, Inflatable Connector
Custom Sf6 Gas Management Inflation System Connector 15 Unit, Inflatable Connector

Large Image :  Custom Sf6 Gas Management Inflation System Connector 15 Unit, Inflatable Connector

Product Details:
Place of Origin: Shanghai
Brand Name: KSTONE
Certification: ISO9000
Model Number: Inflatable connector, 15 piece set
Payment & Shipping Terms:
Minimum Order Quantity: 10
Price: $2000-$100000
Packaging Details: Carton / Wooden Box
Delivery Time: 7-10 work days
Payment Terms: T/T
Supply Ability: 1000
Contact Now
Detailed Product Description
Highlight:

Custom sf6 gas management

,

sf6 gas management Connector

,

gas inflation system Connector

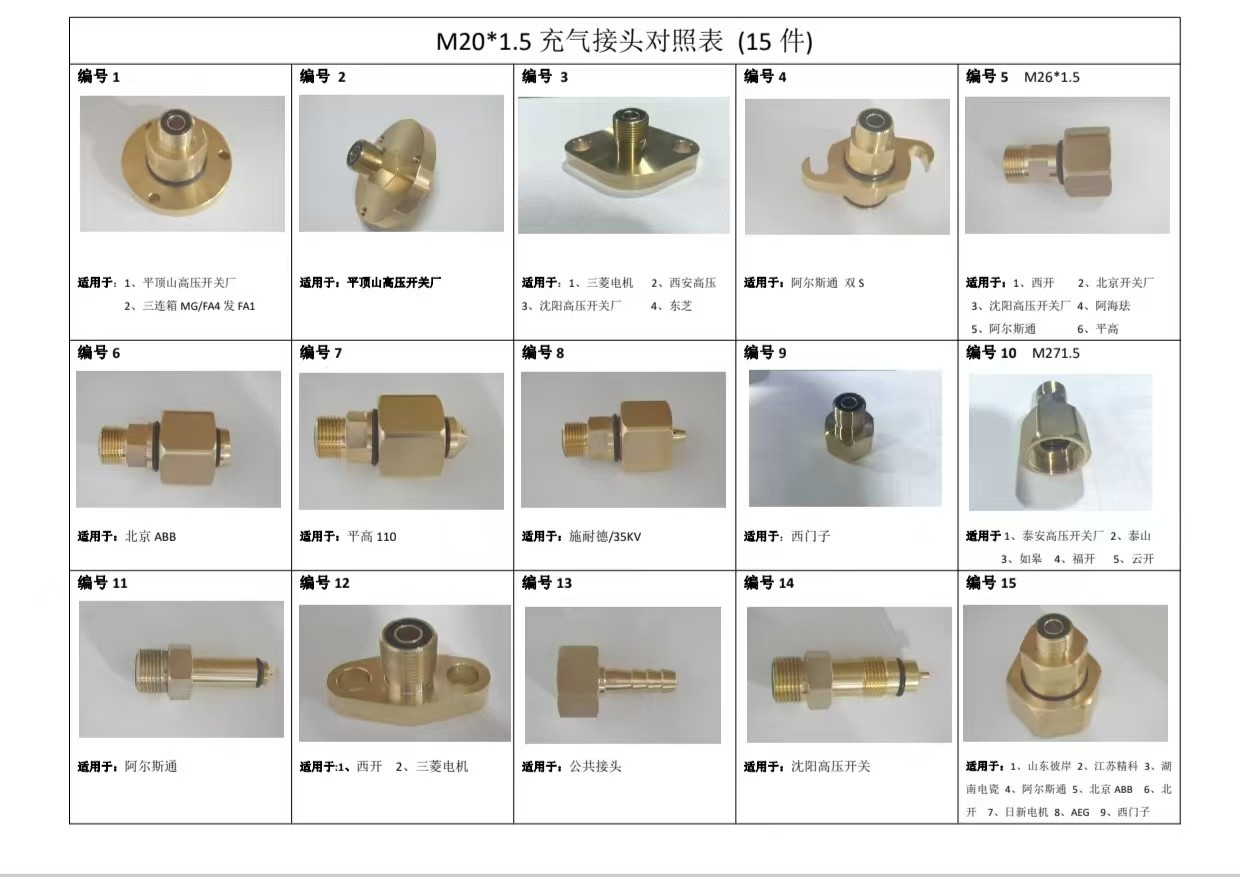

Industrial Inflatable Connector Kit (15-Piece) – Custom OEM Solutions for Gas Systems

Product Overview

This 15-unit connector ensemble offers modular solutions for industrial gas networks, engineered to integrate with premium OEM brands: ABB, Schneider Electric, Siemens, Alstom Grid, and Mitsubishi Electric. Featuring pressure-optimized designs with Viton®-sealed interfaces, the kit includes straight/elbow/tee connectors, adapters, and spare seals for rapid installation in complex piping systems. Customization options cover material grades, thread standards, and high-pressure ratings up to 20 MPa.

Configuration Matrix

Component Type Qty Specifications
Straight Connectors 5 DN10-DN20, 304 stainless steel
90° Elbow Connectors 4 DN15-DN25, 10MPa pressure rating
Tee Junction Connectors 3 DN12-DN20, leak-proof design
Threaded/Quick Adapters 2 NPT/BSP convertible, M20×1.5 metric
Sealing Kit 1 Spare Viton® O-rings & NBR gaskets

OEM Compatibility

Manufacturer Equipment Applications
ABB GIS switchgear, power transformers
Schneider Electric Medium-voltage switchgear
Siemens AG Power distribution systems
Alstom Grid High-voltage substation components
Mitsubishi Electric Switchyard control equipment

Technical Specs Table

Parameter Standard Specs Custom Options
Material 304 stainless steel 316 SS / brass C36000 / PTFE-lined
Threads Metric M20×1.5 NPT / BSPP / BSPT / DIN 2999
Pressure Rating 10 MPa Up to 20 MPa (high-pressure)
Temp Range -20°C to +80°C -40°C to +120°C (special coating)
Leak Test Bubble test @ 1.5x working pressure Helium mass spec. (1×10⁻⁹ mbar·L/s)

Custom Engineering

  • Material Options: Corrosion-resistant alloys for marine/chemical use
  • Thread Conversion: DIN 477 to JIS B0209, etc.
  • High-Pressure Design: Hydrogen/natural gas applications up to 20 MPa



Tag:

sf6 management,

gas inflation system,

gas cylinder converter
