500L-2000L SF6 Recovery Machine,customizable large recovery inflation device

Large Image : 500L-2000L SF6 Recovery Machine,customizable large recovery inflation device

Product Details:

Place of Origin:	Shanghai
Brand Name:	KSTONE
Certification:	ISO9000
Model Number:	KSLH-110Y/160-1200WZ

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	$90000-$100000
Packaging Details:	Wooden Box
Delivery Time:	45 days
Payment Terms:	T/T
Supply Ability:	10 per year

Contact Now

Detailed Product Description

Features:	High Efficiency, Low Noise, Easy Operation	Capacity:	100kg/h
Weight:	≤2000kg	Product Type:	Gas Recovery Machine
Vacuum Pump Capacity:	100Nm3/h	Power Supply:	AC 380V, 50Hz
Filling Pressure:	≤ 0.8MPa	Operating Temperature:	-20-50℃
Storage Capacity:	500L-2000L Stainless Steel Tank Or Carbon Steel Galvanized Optional
Highlight:	500L SF6 Recovery System , R134 SF6 Recovery System , SF6 portable r134 recovery machine

KSLH-110Y large capacity SF6 recovery system for GIS/GIL, customizable large recovery inflation device
Industry standard setting
As the main author of the technical standards for SF6 treatment systems in China DL/T1353-2024 and DL/T 2756-2024, our solution has established a global industry benchmark. The SF6 recovery equipment is custom designed with configurable features: negative pressure recovery, oil-free/lubricated compression options, optional storage capacity (500L-2000L), and fully automatic PLC control.

System Overview.

The KSLH-110Y/160-1200WZ high-capacity automation system has been optimized for withstand voltage testing of 550kV insulation tanks in the power grid. It integrates a 110m ³/h oil-free air-cooled piston main compressor, a 160m ³/h negative pressure compressor (≤ 5Pa ultimate vacuum), a 63m ³/h pipeline vacuum pump (≤ 5Pa ultimate vacuum), and a 1200L 304 stainless steel horizontal storage tank, carbon steel galvanized storage tank (optional), for efficient management of high-pressure SF6.

Technical specification sheet

Component	Specification
Main Compressor	110m³/h, oil-free, air-cooled piston
Negative-Pressure Compressor	160m³/h, ultimate vacuum ≤ 1000Pa
Pipeline Vacuum Pump	63m³/h, ultimate vacuum ≤5Pa
Liquid Storage Tank	1200L horizontal, 304 stainless steel or galvanized carbon steel

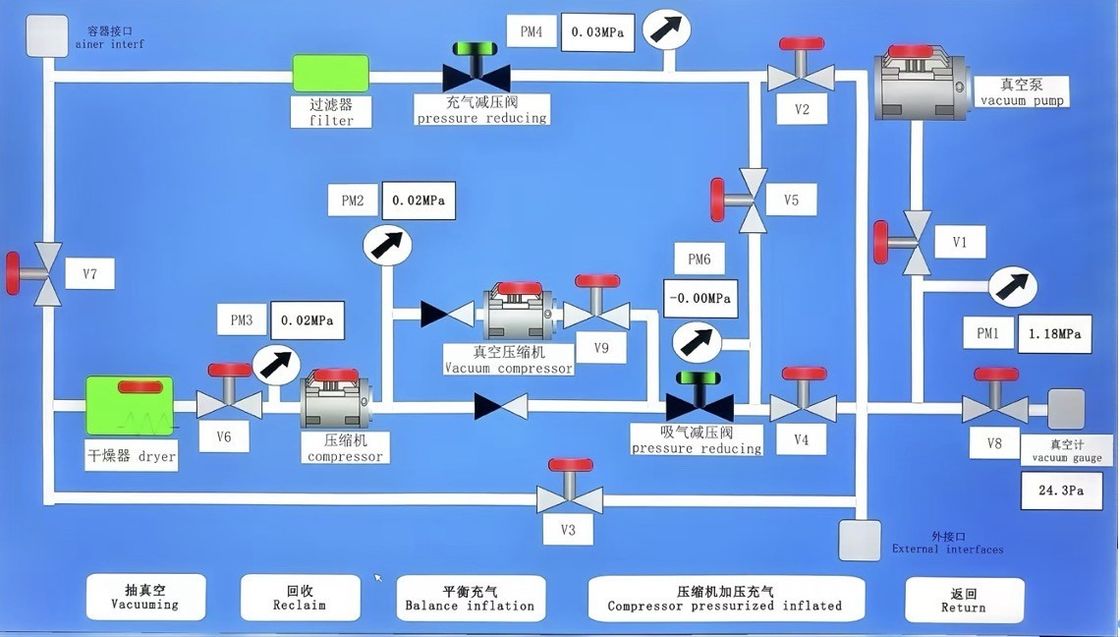

Control System	PLC-based with HMI touchscreen interface
Filtration Module	0.1μm particle filter, 3ppm moisture trap
Power Supply	3Φ 380V 50Hz, (can be customized according to requirements) Custom configuration options

Custom Configuration Options

Compression Systems:
- Oil-free compressors for contamination-free recovery
- Lubricated compressors for high-pressure applications
Storage Solutions:
- 500L-2000L stainless steel tank or carbon steel galvanized optional
Functional Add-ons:
- Adsorption dehydration dehumidification device
- Online gas purity monitoring (0-99.99%) optional
Mobility Options:
- Trailer-mounted designs for field operations

Compliance and Certification
Compliant with DL/T1353-2024 (China) and DL/T 2756-2024
Suitable for GIS/GIL systems with voltage levels up to 1100kV
ISO 14001:2015 Environmental Management System Certification
CE mark meets the requirements of the European market
