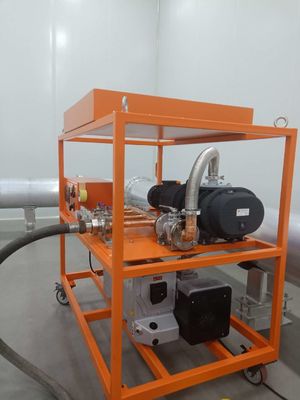

Large Vacuum Units, Dn20, 500m3/H, Roots Pump, Front-End Pump KSCZ-500/100

Large Vacuum Units, Dn20, 500m3/H, Roots Pump, Front-End Pump KSCZ-500/100
Large Vacuum Units, Dn20, 500m3/H, Roots Pump, Front-End Pump KSCZ-500/100 Large Vacuum Units, Dn20, 500m3/H, Roots Pump, Front-End Pump KSCZ-500/100 Large Vacuum Units, Dn20, 500m3/H, Roots Pump, Front-End Pump KSCZ-500/100

Large Image :  Large Vacuum Units, Dn20, 500m3/H, Roots Pump, Front-End Pump KSCZ-500/100

Product Details:
Place of Origin: Shanghai
Brand Name: KSTONE
Certification: ISO9000
Model Number: KSCZ-500/100
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: $15000-$18000
Packaging Details: Wooden Box
Delivery Time: 30 days
Payment Terms: T/T
Supply Ability: 10 per year
Contact Now
Detailed Product Description
Features: High Vacuum Degree, Compact Design Inlet Port Size: DN20
Frequency: 50Hz Outlet Port Size: DN20
Power Source: Electric Weight: 800
Dimensions: 600mm X 500mm X 800mm Ultimate Vacuum: 0.0067mbar
Voltage: 380V Application: Vacuuming SF6 Gas In High Voltage Electrical Equipment
Highlight:

DN40 sf6 gas management

,

sf6 gas management Unit

,

DN40 dilo sf6 gas cart

Vacuum Unit, Ultimate vacuum degree, KSCZ-500/100

Designed for industrial vacuum applications, the KSCZ-500/100 system integrates a 500 m³/h Roots pump and 100 m³/h front-end pump, featuring anti-backflow oil protection to prevent contamination. With two M27 valve ports for multi-channel connectivity, it achieves an ultimate vacuum of 6×10⁻² Pa. Operated via 380V AC 50Hz power, the unit includes two 10m DN20 pipelines (M27 threads) as standard. Customers can choose vacuum pumps from premium brands like Leybold/Busch or cost-effective Chinese models, with customizable pipeline quantity and length to meet project requirements.

Technical Parameter Table

Parameter Description
Model KSCZ-500/100
Pump Configuration 500 m³/h Roots pump + 100 m³/h front-end pump
Anti-Backflow Protection Oil-based design for contamination prevention
Valve Ports 2× M27 threaded ports for multi-channel connection
Ultimate Vacuum 6×10⁻² Pa
Power Supply 380V AC, 50Hz
Standard Accessories 2×10m DN20 pipelines (M27 threads)
Pump Brand Options Leybold, Busch, or Made-in-China models
Pipeline Customization Adjustable quantity and length
