Mobile Vacuum Dilo SF6 Gas Cart ,63kg, DN8mm, For Gas Refilling KSCZ-15C

Mobile Vacuum Dilo SF6 Gas Cart ,63kg, DN8mm, For Gas Refilling KSCZ-15C
Mobile Vacuum Dilo SF6 Gas Cart ,63kg, DN8mm, For Gas Refilling KSCZ-15C

Large Image :  Mobile Vacuum Dilo SF6 Gas Cart ,63kg, DN8mm, For Gas Refilling KSCZ-15C

Product Details:
Place of Origin: Shanghai
Brand Name: KSTONE
Certification: ISO9000
Model Number: KSCZ-15C
Payment & Shipping Terms:
Minimum Order Quantity: 5
Price: $2000-$5000
Packaging Details: Wooden Box
Delivery Time: 10 days
Payment Terms: T/T
Supply Ability: 1000 per year
Contact Now
Detailed Product Description
Features: High Vacuum Degree, Compact Design, Easy To Operate Weight: 63kg
Model: Vacuum Pump Inlet Port Size: DN8
Application: Vacuuming SF6 Gas In High Voltage Electrical Equipment Max Flow Rate: 15m3/h
Inlet/Outlet Diameter: 8mm Ultimate Vacuum Degree:: 10pa
Highlight:

mobile dilo sf6 gas cart

,

20mm dilo sf6 gas cart

,

20mm sf6 cart

KSCZ-15C SF6 Vacuum Inflating Trolley - 15m³/h Pump, Stainless Hose, Pressure Regulator for Gas Chamber Charging
SF6 Vacuum Inflating Trolley – KSCZ-15C model features a 15m³/h vacuum pump, stainless steel armored hose, and pressure regulator for mobile gas charging. Designed for SF6 gas refilling in switchgear chambers, this trolley doubles as a portable cylinder carrier with integrated stainless steel hosing for leak-proof connections. It is equipped with an inflation pressure regulator and cylinder weighing system, ensuring precise gas management during charging operations. The 15m³/h vacuum pump enables efficient evacuation, while the mobile design allows easy deployment across industrial sites.​
Basic Configuration:​
  • Pointer Display Table: 0 MPa - 1.6 MPa​
  • Vacuum Gauge Range: 0.1 - 10000 Pa​
  • Cylinder Weighing Range: 0 - 150 kg​
  • SF6 Regulator Outlet Pressure: -1 - 1.6 MPa​
  • Stainless Steel Armored Hose: DN8/6m, 1 piece​
  • SF6 Cylinder Connector: G5/8​
  • Cylinder Connection Hose: DN8/0.3m stainless steel armored hose​
Optional Add-ons:​
  • Cylinder Heating System (removable)​
  • Enhanced Cylinder Weighing Module (removable)​
Technical Specifications:​

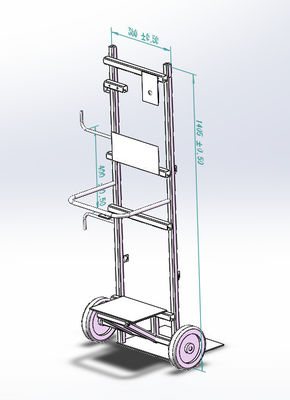

  • Dimensions: 600×570×1405 mm (L×W×H)​
  • Net Weight: 62 kg​
Technical Parameter Table
Parameter
Description
Model
KSCZ-15C
Pump Capacity
15m³/h vacuum pump
Hose Type
DN8 stainless steel armored hose (6m length)
Pressure Regulation Range
-1 to 1.6 MPa (outlet)
Vacuum Gauge Range
0.1 - 10000 Pa
Cylinder Weighing Range
0 - 150 kg
Connector Type
G5/8 for SF6 cylinders
Dimensions
600×570×1405 mm
Weight
62 kg
Optional Features
Cylinder heating & advanced weighing systems


Tag:

sf6 gas management,

mobile vacuum pump,

dilo sf6 gas cart
