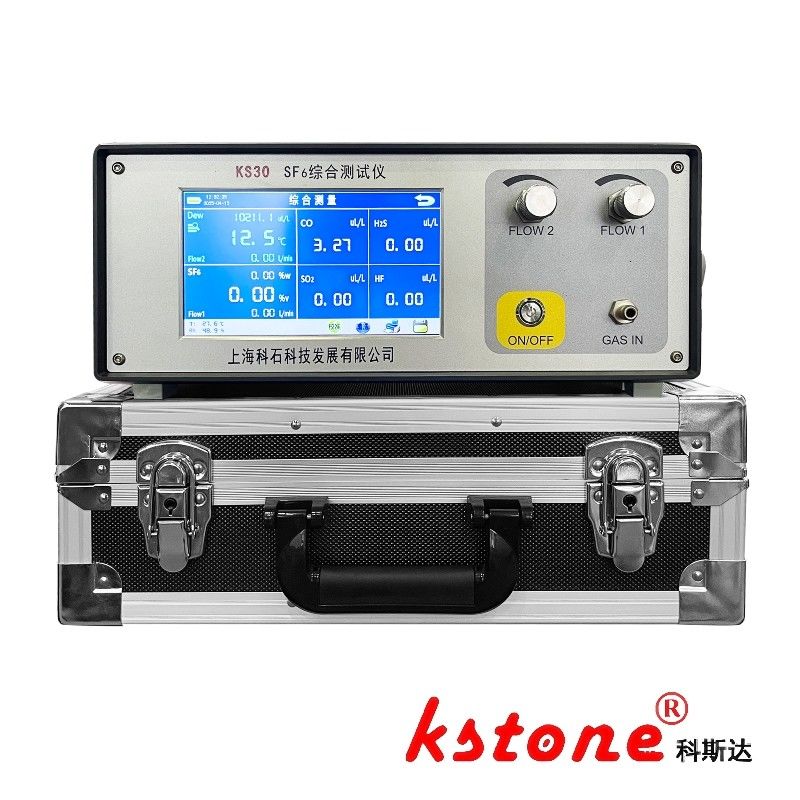

OEM Dew Point SF6 Gas Tester instrument 10W 220V

Large Image : OEM Dew Point SF6 Gas Tester instrument 10W 220V

Product Details:

Place of Origin:	Shanghai
Brand Name:	KSTONE
Model Number:	KS30

Payment & Shipping Terms:

Price:	$2000-$100000
Packaging Details:	Carton / Wooden box
Payment Terms:	T/T

Contact Now

Detailed Product Description

Dimensions:	200mm X 150mm X 100mm	Resolution:	0.1
Power Consumption:	10W	Storage Temperature:	-20-60°C
Operating Temperature:	0-40°C	Accuracy:	±0.5%
Weight:	2kg	Power Supply:	AC/DC
Highlight:	OEM SF6 Gas Tester , 220V SF6 Gas Tester , 10W sf6 tester

Comprehensive Gas Tester: Dew Point, Purity & Decomposition Products Accurately KS30

Most SF6 comprehensive testers, except for a few commonly used models, are basically modular and customizable.

We will provide customized services according to the needs of our customers.

Our company is one of the units responsible for formulating the industry standards issued by the National Energy Administration of China,

namely "DL/T1366-2023 Sulfur Hexafluoride Gas for Power Equipment"

and "DL/T1353-2024 Technical Specifications for Sulfur Hexafluoride Treatment Systems".

Technical Specifications

SF6 Humidity
Measurement Range	Dew point: -80～+20℃ (Supports ppmv, etc.)
Dew Point Accuracy	±1℃ (When the dew point temperature is lower than 0℃, the sensor output is the frost point)
Response Time	63％[90％] +20→-20℃ Td: 5s[45s] -20→-60℃ Td: 10s[240s]
Resolution	Dew point: 0.1℃ or 0.1ppm
Gas Flow Rate	0.25～0.35L/min Equipped with an electronic mass flowmeter No impact from the sample gas flow rate
Pressure Measurement	0～1.0MPa
Probe Protection	Stainless steel sintered filter screen
SF6 Purity
Range	0～100% SF6
Accuracy and Repeatability	±0.1%, independent of flow rate
Response Time	30S
SF6 Decomposition Products
H2S	Measurement range: 0～200ppm Accuracy: ≤±0.5%
SO2	Measurement range: 0～100ppm Accuracy: ≤±0.5%
CO	Measurement range: 0～1000ppm Accuracy: ≤±0.5%
HF	Measurement range: 0～10ppm Accuracy: ≤±0.5%
Sensitivity	0.1 ppm
Repeatability	≤±1%
General Part
Operating Voltage	220VAC±10%, 50Hz. Both AC and DC available. Overcharge protection. Continuous working time is not less than 5 hours.
Storage Temperature Range	-40～+70℃
Output Interface	Compliant with USB1.1 specification
Data Storage	Can store 200 records
Operating Environment	Temperature: -30～+60℃ Pressure: 0～20bar Sample Gas Flow Rate: No impact
Other Configurations	Standard version management software, including report printing and commonly used humidity conversion toolkit
Dimensions	132×283×308 (presumably in mm, if not, please clarify the unit)

OEM Dew Point SF6 Gas Tester instrument 10W 220V 0

Dew Point Display Area (Operable)
Purity Display Area
CO Indication Value
SO2 Indication Value
H2S Indication Value
Back Key
"Storage" Key
"Print" Key
"Cleaning" Key
"Calibration" Key
Ambient Temperature and Humidity

Selection of KS30 Series Comprehensive Testers

Model	Purity	Dew Point	SO₂	H₂S	CO	HF	Equipped with Recycling Function
KS30	√	√	√	√	√
Ks30-6	√	√	√	√	√	√
KS30-3	√	√	√
KS30-T			√	√	√
KS30-TC	√		√	√	√
KS30-CS	√	√
KS30-4			√	√	√	√
KS30-C3	√		√	√	√
KS30-C4	√		√	√	√	√
KS30-C	√
kS30-R-*							√

SF6 comprehensive testers, except for a few commonly used models, are basically modular customized.

We will provide customized services based on customer needs.
