Multi Component Dilo SF6 Leak Detector Pointer 4 Gas Detection ODM

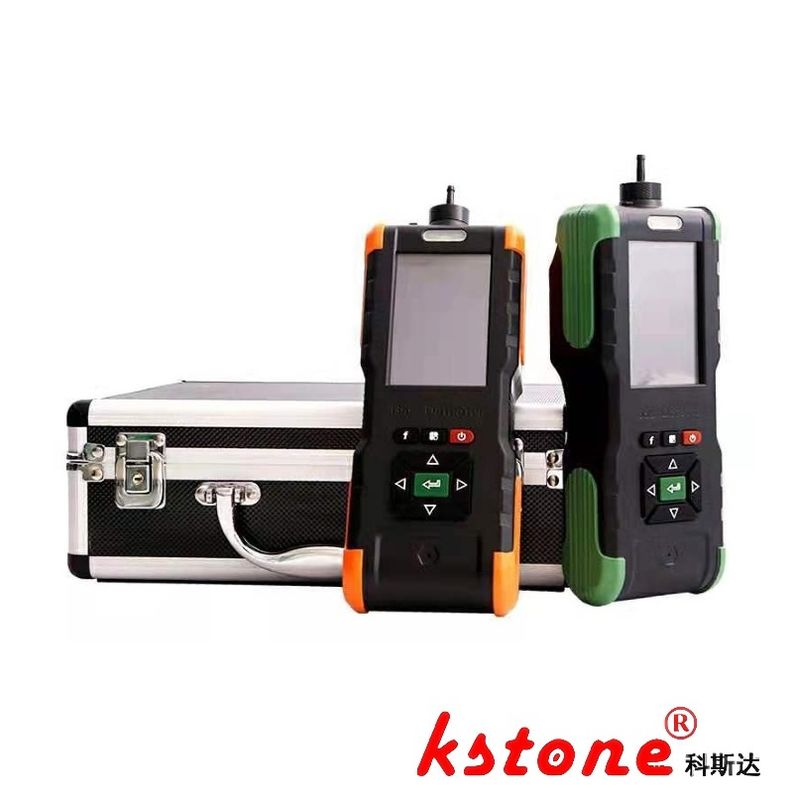

Multi-component Infrared Handheld Gas Tester | 4-Gas Detection, Adjustable Pump, IP65 Rating LF-01-FR

I. Product Features

1. Fast and Precise Infrared Detection
   Equipped with an NDIR (Non-Dispersive Infrared) sensor, the instrument efficiently filters impurities like oil, water, and dust, ensuring high-precision measurements for infrared-sensitive gases.
2. User-Friendly Design
   • 3.5-inch HD color screen for intuitive data visualization.
   • Pure hardware one-key power on/off to reduce power consumption.
   • Optional long-handle suction probe tube for hard-to-reach areas.
   • Includes a leather shoulder bag for portable use.
3. Comprehensive Functions
   • Simultaneous display of real-time data and concentration curves.
   • Adjustable high/low speed air pump for flexible sampling.
   • Supports simultaneous detection of up to 4 infrared-sensitive gases (optional).
   • Optional external Bluetooth printer for mobile data printing.
   • Multiple gas unit conversion (automated system calculation), Chinese/English display switching.
   • Large-capacity data storage (customizable) with Micro-USB and Android cable connectivity for data transfer.
   • Suitable for high-temperature, high-humidity, and high-dust environments with a sampling probe gun.

II. Technical Parameters

• Dimensions: (H x W x D) 231×86×52mm
• Weight: ~500g
• Pump Flow Rate: 0–500 cc/Min (adjustable)
• Display: 3.5-inch color screen (480×320 resolution)
• Display Content: Gas formula, measured value, unit, concentration curve, battery status, time, alarm/fault info
• Alarms: Buzzer, red indicator light, LCD prompt, low battery alarm
• Data Storage: 8G SD card (standard), optional 16G/32G; customizable recording interval
• Communication: USB connection for TXT data download
• Printing: Optional external Bluetooth printer
• Power: 6000 mAh rechargeable lithium battery (Micro-USB 5V/2A charger)
• Environment:
  • Humidity: 0–95%RH (non-condensing; optional filter for high humidity)
  • Temperature: -20℃~50℃ (up to 1200℃ with flue gas probe gun)
• Certifications: Ex ia IIC T4 (explosion-proof), IP65 (protection level)

III. Application Scenarios

IV. Instrument Configuration

• Standard: Detector main unit, operation manual, detection report, certificate of conformity.
• Optional Accessories: Standard gas, sampling probe tube, external Bluetooth printer, etc.

V. Sensor Specifications (Infrared Principle)
