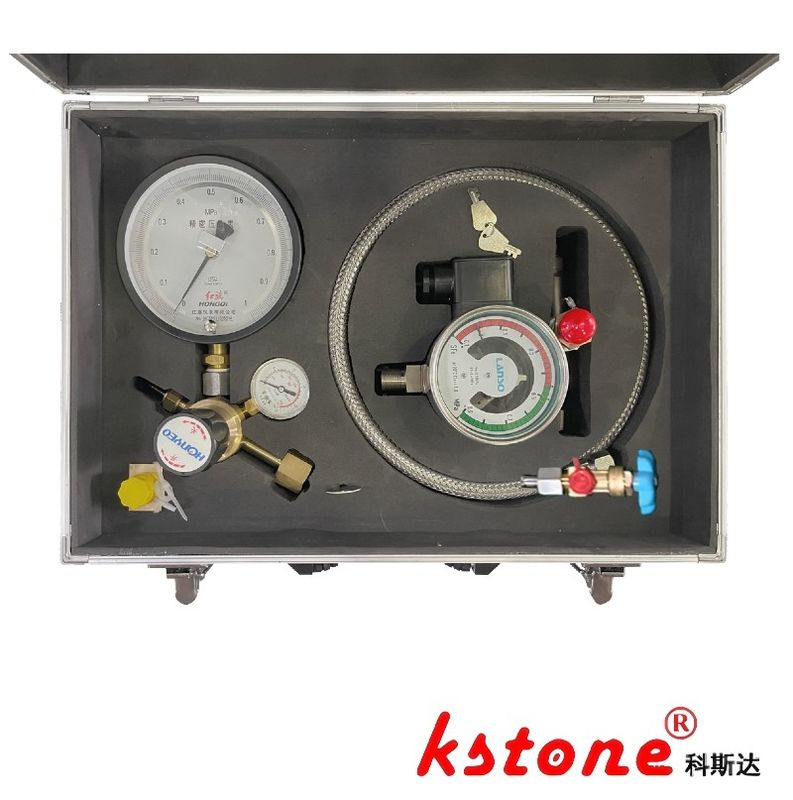

OEM SF6 Accessories Nitrogen Cylinder Connector Inflation Valve Set

High-precision Inflation Set, A Safety Valve, A Density Relay, A Hand Valve, KSCQ-6G

The SF6 gas in the gas cylinder is charged into the GIS through the pressure reducing valve, the inflation pipe and the density relay, which is composed of a high-precision pressure gauge, a safety valve (0.98 Mpa), Inflation joint,a hand valve etc.

 接

1. G5/8” 接头  G5/8 "connector

2. 减压阀 Pressure reducing valve

3. 精密压力表 Precision pressure gauge

4. M16 螺纹,M16 thread

5. DN8 高压胶管 5m   DN8 high-pressure rubber hose 5m

6. 安全阀  Safety valve (0-0.98Mpa)

7. 充气接头 flation joint

8. 球阀ball valve

Configuration:

1. pressure reducing valve

2. high-precision pressure gauge

3. safety valve,

4. a 5m DN8 hose

5. Inflation joint

6. ball valve

7. portable box
