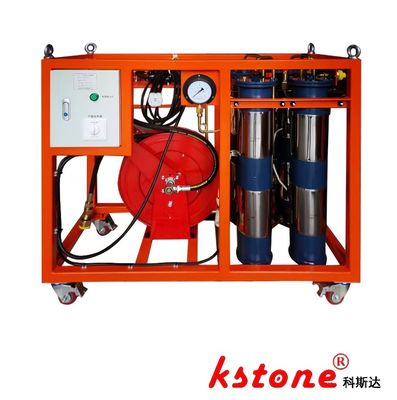

Dilo Nitrogen Dry Gas SF6 Cart Moisture & Particle Filter 50ppm

  • Dilo Nitrogen Dry Gas SF6 Cart Moisture & Particle Filter 50ppm
Place of Origin Shanghai
Brand Name KSTONE
Certification ISO9000
Model Number KS3000-GL-4-PG
Minimum Order Quantity 5
Price $2000-$100000
Packaging Details Carton / Wooden Box
Delivery Time 45 days
Payment Terms T/T
Supply Ability 100

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Included Components 1 SF6 Accessories Special Features Durable, Corrosion-resistant, Easy To Install
Color Silver Material Stainless Steel
Usage For Use With SF6 Gas Insulated Switchgear Warranty 1 Year
Compatibility Compatible With All SF6 Gas Insulated Switchgear Models Size Standard
Highlight

Nitrogen sf6 cart

,

50ppm sf6 cart

,

50ppm dilo gas cart
Leave a Message
Product Description

SF6 Moisture & Particle Filter – Auto Coil, 4x Molecular Sieves, 50ppm Max Moisture – Dry Air/Nitrogen Compatible KS3000-GL-4-PG



1. Main function:

It can be used to dry non corrosive gases such as SF6, dry air, nitrogen, etc. After one treatment, the micro water value can be less than 50ppm;
Moisture filtering molecular sieves can be recycled.


2. The main components of the product are:
Four sets of molecular sieves for water filtration
1 set of automatic coil unit; The length of the pipeline inside the coil unit is 15m. It can automatically shrink and has a pressure resistance of 2Mpa
4 sets of heating modules
1 set of temperature control module
Two inlet and outlet pipelines
Two DN20 self sealing valves (optional according to customer requirements)
1 pressure gauge

3. Dimensions: 160 * 50 * 135cm (estimated)


4. Weight: 150Kg (estimated)


5. Main technical parameters: After one processing, the output gas moisture content can reach below 50ppm
