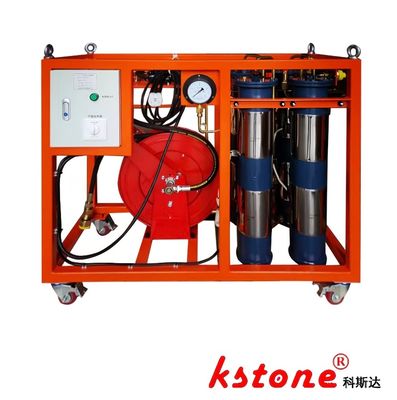

Dilo Nitrogen Dry Gas SF6 Cart Moisture & Particle Filter 50ppm

SF6 Moisture & Particle Filter – Auto Coil, 4x Molecular Sieves, 50ppm Max Moisture – Dry Air/Nitrogen Compatible KS3000-GL-4-PG

1. Main function:

It can be used to dry non corrosive gases such as SF6, dry air, nitrogen, etc. After one treatment, the micro water value can be less than 50ppm;
Moisture filtering molecular sieves can be recycled.

2. The main components of the product are:
Four sets of molecular sieves for water filtration
1 set of automatic coil unit; The length of the pipeline inside the coil unit is 15m. It can automatically shrink and has a pressure resistance of 2Mpa
4 sets of heating modules
1 set of temperature control module
Two inlet and outlet pipelines
Two DN20 self sealing valves (optional according to customer requirements)
1 pressure gauge

3. Dimensions: 160 * 50 * 135cm (estimated)

4. Weight: 150Kg (estimated)

5. Main technical parameters: After one processing, the output gas moisture content can reach below 50ppm
