Dual Wave SF6 Leak Detector Gas Insulated Equipment Automatic Zeroing

Large Image : Dual Wave SF6 Leak Detector Gas Insulated Equipment Automatic Zeroing

Product Details:

Place of Origin:	Shanghai
Brand Name:	KSTONE
Certification:	ISO9000
Model Number:	LF-02-FR

Payment & Shipping Terms:

Minimum Order Quantity:	5
Price:	$2000-$100000
Packaging Details:	Carton / Wooden Box
Delivery Time:	7-10 work days
Payment Terms:	,T/T
Supply Ability:	1000

Contact Now

Detailed Product Description

Features:	Automatic Zeroing, Data Storage, Audible And Visual Alarms	Measurement Range:	0-1000 Ppm
Storage Temperature:	-20°C To +60°C	Response Time:	1 Second
Display:	LCD	Weight:	0.9 Kg
Accuracy:	± 2% Of Reading	Sensitivity:	1 Ppm
Warranty:	2 Years	Certifications:	CE, CSA, UL
Dimensions:	233 X 125 X 56 Mm	Power Supply:	4 AA Batteries Or AC/DC Adapter
Highlight:	Dual Wave SF6 Leak Detector , Insulated SF6 Leak Detector , Automatic Zeroing sf6 gas detector

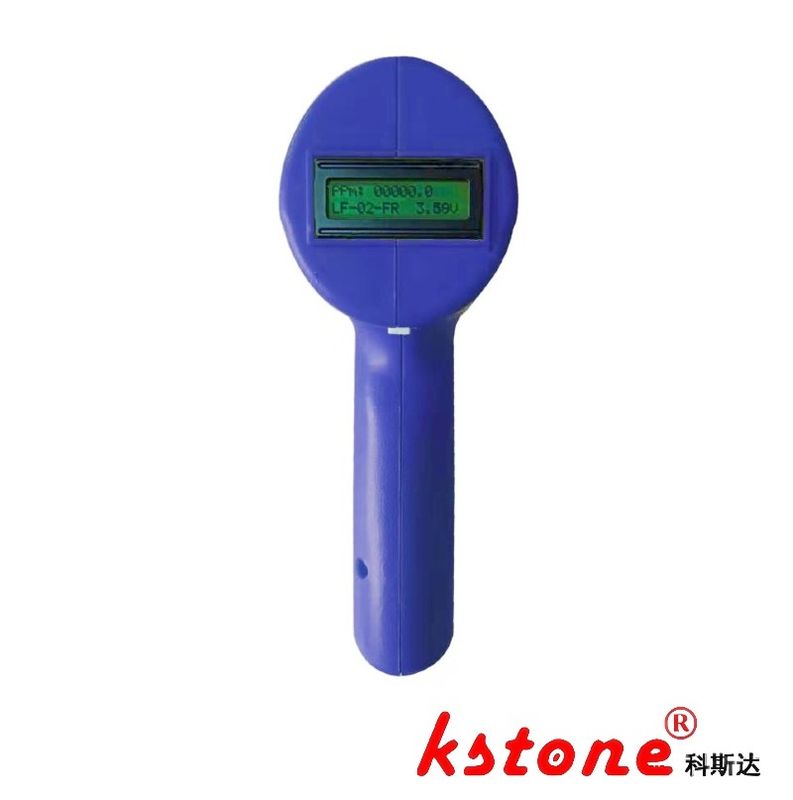

Portable SF6 Leak Detector - Dual-Wave Infrared, 0.1ppm Sensitivity LF-02-FR

Designed for outdoor inspection of SF6 gas-insulated equipment (GIS, ring main units, circuit breakers), this handheld detector uses dual-wave NDIR technology for precise quantitative leak detection. With 0.1ppm sensitivity, it resists "poisoning" from high-concentration SF6, ensuring reliable performance. Features include:

Instant numerical concentration display with battery voltage
Audible buzzer feedback for concentration changes
8+ hour battery life (large-capacity lithium battery)
Zero cross-sensitivity to other gases; no poisoning risk
Manually controlled air pump for extended membrane pump life
PM1.0-2.5 particle filter for sensor protection
Imported infrared sensor (10-year lifespan)
Automatic zero-point drift correction

Technical Specs	Details
Range	0-1000ppmv (Optimal: 0.1-100ppmv)
Accuracy	±2% (0-100ppmv)
Response Time	≤3 seconds
Preheating Time	≤60 seconds
Sampling Method	5-8ml/s diaphragm pump
Working Temperature	-10℃~60℃
Working Humidity	0-99%

Ideal for SF6 and halogen gas qualitative detection (calibrated for SF6). Lightweight (0.4kg), portable, and explosion-proof box included.
