Adjustable Quantitative SF6 Gas Sensor Dilo Leak Detector Equipment

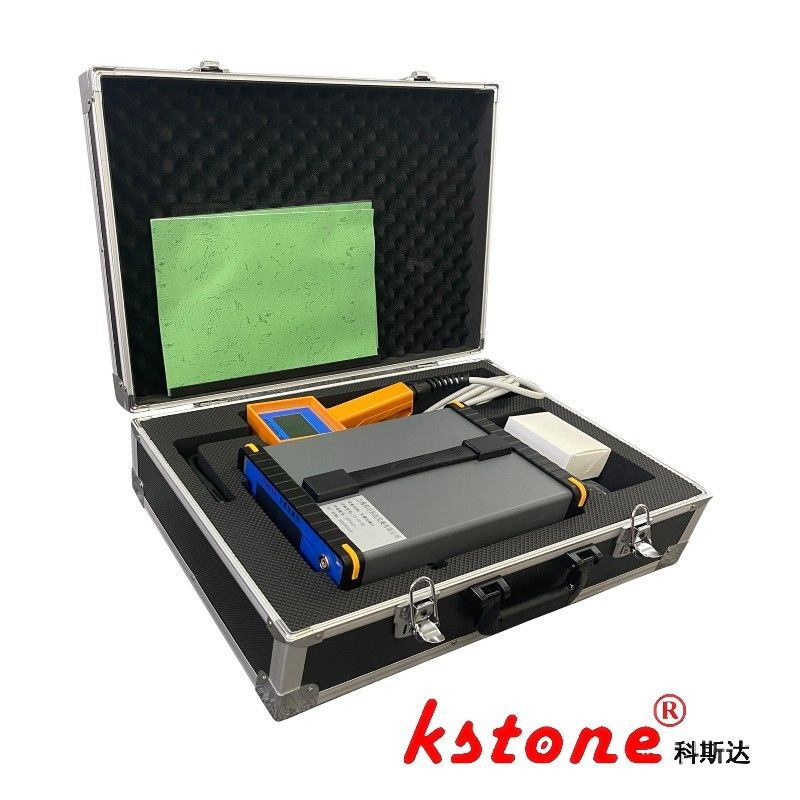

Large Image : Adjustable Quantitative SF6 Gas Sensor Dilo Leak Detector Equipment

Product Details:

Place of Origin:	Shanghai
Brand Name:	KSTONE
Certification:	ISO9000
Model Number:	LF-03-FR

Payment & Shipping Terms:

Minimum Order Quantity:	5
Price:	$2000-$100000
Packaging Details:	Carton / Wooden Box
Delivery Time:	7-10 work days
Payment Terms:	T/T
Supply Ability:	1000

Contact Now

Detailed Product Description

Features:	Audible And Visual Alarms, Adjustable Sensitivity, Auto Power Off	Power Supply:	4 AA Alkaline Batteries
Warranty:	1 Year	Sensitivity:	0.1ppm
Weight:	1.2kg	Response Time:	Instantaneous
Certifications:	CE, RoHS	Storage Temperature:	-20°C To 60°C
Highlight:	adjustable sf6 gas sensor , Dilo sf6 gas sensor , Quantitative dilo leak detector

LF-03-FR SF6 Quantitative Leak Detector | 0.1ppm Accuracy, GB/T11023-2018 Compliant

The LF-03-FR SF6 gas leak detector is a portable next-gen solution for high-voltage equipment (GIS, circuit breakers, switches) leak detection. Equipped with an imported NDIR dual-beam infrared sensor and advanced calibration technology, it identifies leaks as low as 0.1ppm with ≤±2% F.S. accuracy, delivering results in just 3 seconds.

Key Advantages:

Cost-Effective Alternative: Replaces Wika/Dilo detectors without compromising performance
Long-Lasting Operation: 6+ hours of battery life for extended field use
Intuitive Interface: Color touchscreen LCD with real-time audio-visual alarms
Advanced Algorithms: Hood algorithm for leak rate calculation and long-term calibration stability
Standard Compliance: Meets GB/T11023-2018 requirements as a national standard drafting unit product

Ideal for power utilities, maintenance teams, and manufacturing sectors, the LF-03-FR combines speed and precision for reliable SF6 leak detection.

Technical Specifications Table

Parameter	Description
Model	LF-03-FR
Detection Principle	NDIR non-dispersive infrared (dual-beam)
Measuring Range	0–1000 PPM (customizable options available)
Detection Accuracy	≤±2% F.S. (relative to specified range)
Minimum Detection Limit	0.1ppm
Resolution	0.1ppm
Response Time	≤3 seconds
Preheating Time	≤3 minutes
Sampling Method	Handheld suction type with built-in pump
Display	800×480 main color LCD + 320×240 handle LCD
Operation Mode	Resistive touch screen
Power Supply	Rechargeable lithium battery / AC220V/50Hz
Working Humidity	≤90%RH
Compliance	GB/T11023-2018
