Portable SF6 Gas Sensor Leak Dilo Detector NDIR Infrared

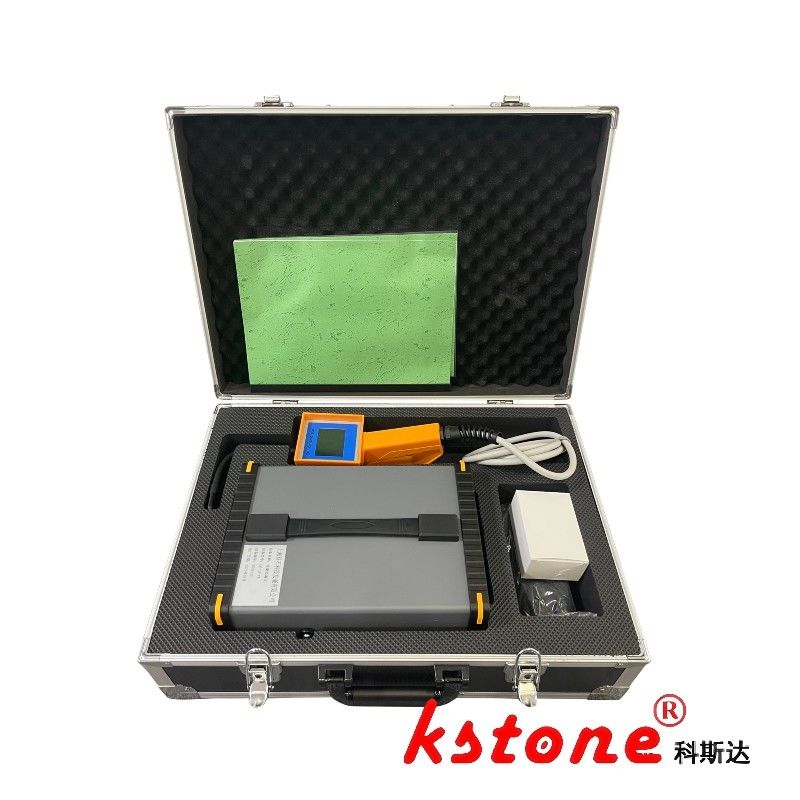

Large Image : Portable SF6 Gas Sensor Leak Dilo Detector NDIR Infrared

Product Details:

Place of Origin:	Shanghai
Brand Name:	KSTONE
Certification:	ISO9000
Model Number:	LF-03-FR

Payment & Shipping Terms:

Minimum Order Quantity:	5
Price:	$2000-$100000
Packaging Details:	Carton / Wooden Box
Delivery Time:	7-10 work days
Payment Terms:	,T/T
Supply Ability:	1000 per year

Contact Now

Detailed Product Description

Additional Features:	Data Storage And Transfer, Audible And Visual Alarms	Response Time:	1 Second
Sensitivity:	1ppm	Dimensions:	230 X 120 X 75 Mm
Weight:	2.9 Kg	Certifications:	CE, CSA, UL
Power Source:	4 AA Batteries	Storage Temperature:	-20°C To 60°C
Highlight:	Dilo sf6 gas sensor , Infrared sf6 gas sensor , Dilo infrared leak detector

LF-03-FR SF6 Gas Leak Detector | Portable NDIR Infrared Sensor, 0.1ppm Accuracy

The LF-03-FR SF6 Gas Leak Detector represents an advanced portable solution engineered to accurately identify SF6 leaks in high-voltage equipment including GIS, circuit breakers, and switches. Equipped with an imported NDIR infrared sensor and sophisticated calibration technology, this detector is capable of identifying leaks as low as 0.1ppm with an accuracy of ≤±2% F.S., and it provides results within 3 seconds.

Reasons to Select LF-03-FR:
✅ Serves as a cost-efficient and high-performance substitute for Wika/Dilo detectors
✅ Offers more than 6 hours of battery life via a rechargeable lithium battery, suitable for field operations
✅ Features a touchscreen interface and alarm functions, including a color LCD display with real-time audio-visual alerts
✅ Incorporates a hood algorithm and calibration system to calculate leak rates and maintain long-term reliability
✅ Complies with the GB/T11023-2018 standard, developed by China's national standard drafting unit

This detector is an ideal choice for power utilities, maintenance teams, and manufacturing enterprises. Place an order now to enhance the speed and precision of your SF6 leak detection capabilities!

Technical Parameters	Details
Operating Voltage	Lithium battery or AC220V/50Hz
Detection Principle	NDIR non-dispersive infrared (double-beam)
Measuring Range	0-1000 PPM (customizable range available)
Detection Accuracy	≤±2% F.S. (relative to the specified measuring range)
Minimum Detection Limit	0.1 ppm
Highest Sensitivity	0.1 ppm
Resolution	0.1 ppm
Response Time	≤3S (response available)
Preheating Time	≤3 min
Detection Method	Handheld suction type
Operating Humidity	≤90% RH
Display Mode	- Main screen: 800×480 graphic color LCD - Handle: 320×240 color LCD
Operation Mode	Resistive touch screen

Instructions for the Main Interface During Startup
When you turn on the power switch on the panel, the instrument will enter the boot screen. Once the initialization process is complete, the main interface will be displayed, as shown in the following figure. This interface includes functions such as "SF6 Quantitative Leakage Detection", "Zero Calibration", "Cover Algorithm", "Settings", and "Device Information".
