SF6 Accessories Cart,Moisture filtration, 5a molecular sieve

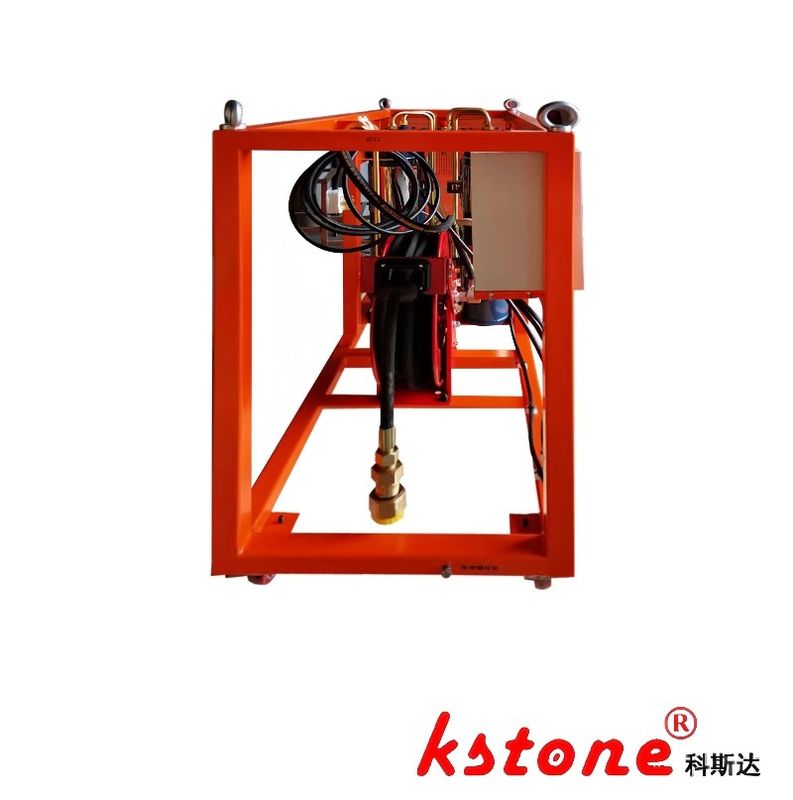

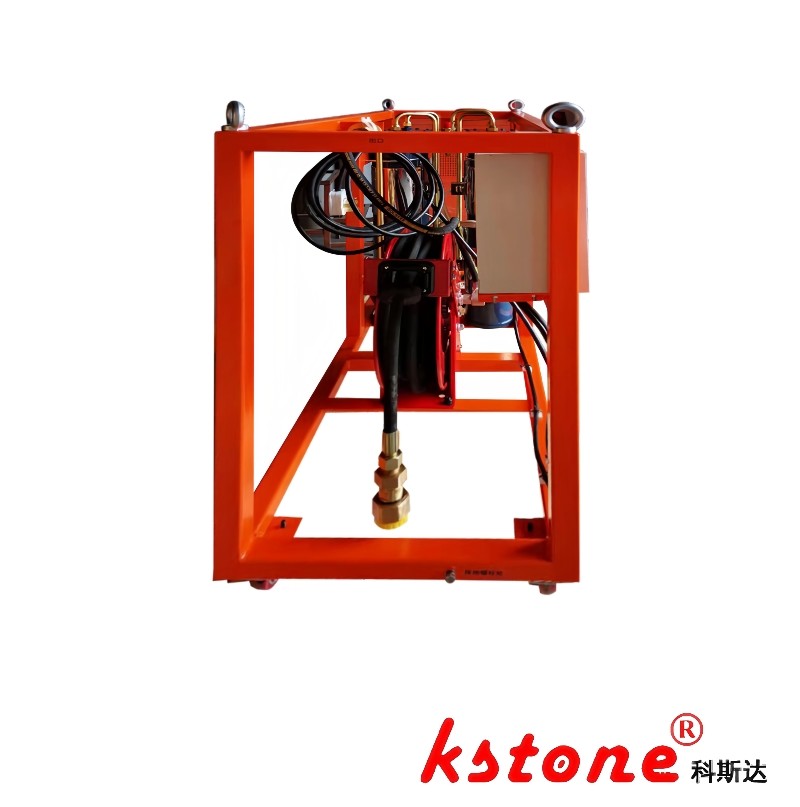

Large Image : SF6 Accessories Cart,Moisture filtration, 5a molecular sieve

Product Details:

Place of Origin:	Shanghai
Brand Name:	KSTONE
Certification:	ISO9000
Model Number:	KS3000-GL-4-PG

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	$3500-$4000
Packaging Details:	Wooden Box
Delivery Time:	15 days
Payment Terms:	T/T
Supply Ability:	100

Contact Now

Detailed Product Description

Product Packaging:	Standard Export Package	Product Delivery Time:	Within 15 Days
Product Type:	Accessories	Product Application:	Electric Power Industry, Railway Industry, Mining Industry, Chemical Industry
Product Features:	High Efficiency, Easy To Operate, Safe And Reliable	Product Function:	Moisture Filtration
Product Size:	Customized	Product Certification:	ISO9001
Highlight:	SF6 Accessories Cart , ISO9001 SF6 Accessories , ISO9001 sf6 gas cart

SF6 Moisture & Particle Filter System – Auto Coil, 4x Molecular Sieves, ≤50ppm Moisture Rating (KS3000-GL-4-PG)

Primary Functions

This product is mainly used as an external accessory for SF6 recovery devices or gas storage tanks to remove moisture from the recovery devices or gas storage tanks;

Designed for drying non-corrosive gases including SF6, dry air, and nitrogen, this system reduces micro-water content to ≤50ppm in a single pass. The moisture-filtering molecular sieves are fully regenerable for repeated use.

System Components

4 sets of moisture-filtering molecular sieves
1 automatic coil unit (15m internal pipeline, self-retracting design, 2MPa pressure resistance)
4 heating modules
1 temperature control module
Dual inlet/outlet pipelines
2 DN20 self-sealing valves (optional per customer request)
1 pressure gauge

Technical Specifications Table

Parameter	Specification
Model	KS3000-GL-4-PG
Target Gases	SF6, dry air, nitrogen (non-corrosive)
Moisture Removal Capacity	≤50ppm after single-pass treatment
Molecular Sieves	4 sets (regenerable design)
Coil Unit	15m pipeline, self-retracting, 2MPa rated
Heating Modules	4 units with temperature control
Valves	2x DN20 self-sealing (optional)
Dimensions (L×W×H)	160×50×135 cm (approx.)
Weight	300 kg (approx.)
