10-100μm， Filtration ，Metal sintered particle filter

Large Image : 10-100μm， Filtration ，Metal sintered particle filter

Product Details:

Place of Origin:	Shanghai
Brand Name:	KSTONE
Certification:	ISO9000
Model Number:	KSCZ-GL-M27-10

Payment & Shipping Terms:

Minimum Order Quantity:	10
Price:	$40
Packaging Details:	Carton / Wooden Box
Delivery Time:	10 work days
Payment Terms:	,T/T
Supply Ability:	1000

Contact Now

Detailed Product Description

Product Code:	KSCZ-GL-M27-10	Product Function:	Particle Filter
Product Durability:	Long Lasting	Product Color:	Silver
Product Compatibility:	SF6 Gas Insulated Switchgear	Product Installation:	Easy To Install
Product Package:	1 Piece Per Pack	Product Material:	Stainless Steel Or Brass
Product Weight:	0.5 Lbs
Highlight:	Sintered Pressure Relief Valve , SF6 Pressure Relief Valve , Sintered gas relief valve

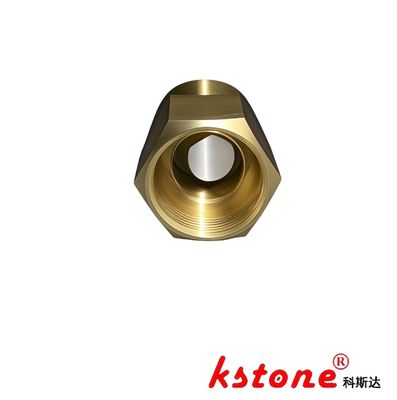

KSCZ-GL-M27-10 Particle Filter Element – 10-100μm Filtration, Sintered Metal Construction

Engineered for precision filtration, the KSCZ-GL-M27-10 safeguards electrical systems by removing dust and particulates from gas streams. Available in 10-100μm particle size options and customizable connection threads, this filter element ensures compatibility with diverse industrial applications.

Key Features:

Material Options: Titanium alloy or stainless steel sintered construction for high-temperature resistance and corrosion durability.
Strategic Placement: Ideal for installation at recycling pipeline inlets or inflation pipeline endpoints.
Protection: Prevents particulate ingress into sensitive electrical components, extending equipment lifespan.

Technical Specifications Table

Parameter	Specification
Model	KSCZ-GL-M27-10
Filtration Rating	10-100μm (selectable)
Construction Material	Titanium alloy or stainless steel
Connection Thread	Customizable options
Operating Temperature	Up to 400°C (material-dependent)
Pressure Rating	10MPa max
Application Position	Pipeline inlet/endpoint
Cleaning Method	Backflush or ultrasonic cleaning

Both ends of the thread can be customized according to requirements;
The filter element can be customized according to the requirements；
