SF6 Inflation ，Standard CGA350 cylinder fitting，Pressure Regulator,

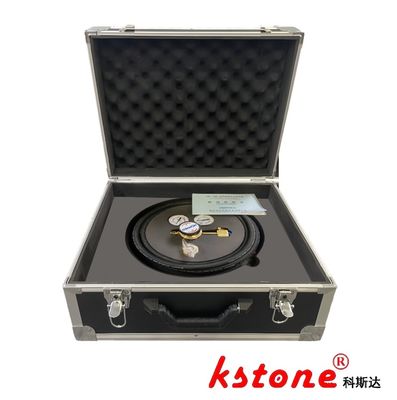

Large Image : SF6 Inflation ，Standard CGA350 cylinder fitting，Pressure Regulator,

Product Details:

Place of Origin:	Shanghai
Brand Name:	KSTONE
Certification:	ISO9000
Model Number:	KSCQ-4 SF6

Payment & Shipping Terms:

Minimum Order Quantity:	10
Price:	$5000-$5500
Packaging Details:	Carton / Wooden Box
Delivery Time:	7-10 work days
Payment Terms:	T/T
Supply Ability:	1000

Contact Now

Detailed Product Description

Weight:	8kg	Compatibility:	SF6 Gas Insulated Switchgear
Product Insulation:	Customized	Product Certification:	IEC, ANSI, GB, Etc.
Product Usage:	SF6 Inflation	Product Pressure:	Customized
Highlight:	SF6 gas transfer kit , nH3 gas transfer kit , SF6 nh3 parts

SF6 Inflation Kit KSCQ-4 – Pressure Regulator, Hoses & Connectors for Gas Cylinder Charging

Primary Function

Designed for efficient SF6 gas transfer, this kit facilitates controlled charging of SF6 from cylinders to equipment via a precision pressure regulator. Ideal for GIS systems and medium-pressure applications, it ensures safe, regulated inflation across diverse industrial setups.

Model Selection Guide

GIS Systems: Opt for 0-1 MPa low-pressure regulator range
Medium-Pressure Equipment: Use 0-0.3 MPa (0-3 bar) range
Note: Specify application pressure requirements during model selection for optimal performance.

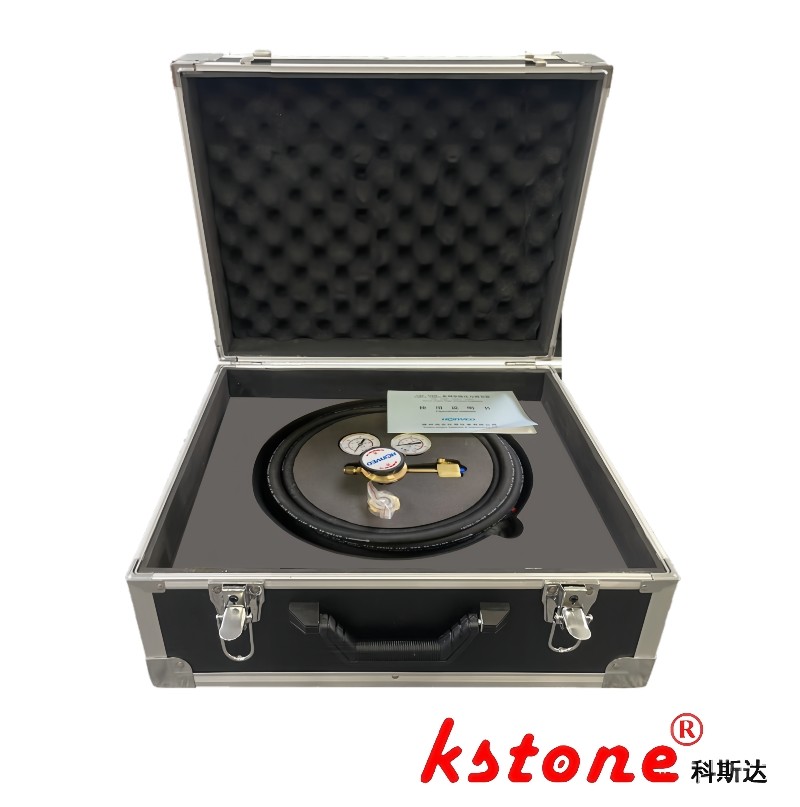

System Configuration

Component	Specification
Pressure Regulator	1 unit (range selectable)
DN8 Hose	5m length, reinforced rubber
Portable Carrying Case	1 unit (impact-resistant)
DN20 Inflation Connector	1 unit (self-sealing design)
Inlet Connection	Standard CGA350 cylinder fitting or G5/8"
Pressure Gauge	Dual-range (inlet/outlet)

Technical Specifications

Parameter	Specification
Model	KSCQ-4
Application	SF6 inflation for GIS/medium-pressure equipment
Regulator Ranges	Low-pressure: 0-1 MPa; Medium-pressure: 0-0.3 MPa
Hose Diameter	DN8 (1/4")
Working Pressure	Up to 10 MPa (inlet)
Temperature Range	-20°C to +60°C
Case Dimensions	60×40×25 cm (approx.)
Weight	8 kg (approx.)
