SF6 Gas Inflation Kit KSCQ-4, Pressure Regulator System with Hose & Connector Set

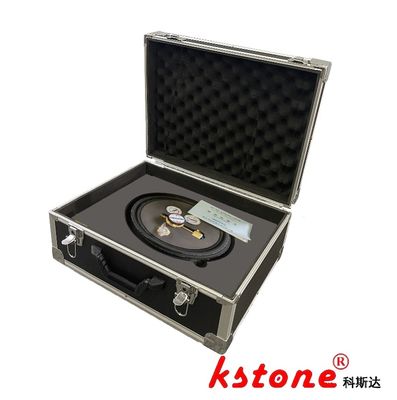

Large Image : SF6 Gas Inflation Kit KSCQ-4, Pressure Regulator System with Hose & Connector Set

Product Details:

Place of Origin:	Shanghai
Brand Name:	KSTONE
Certification:	ISO9000
Model Number:	KSCQ-4 SF6

Payment & Shipping Terms:

Minimum Order Quantity:	10
Price:	$350-$400
Packaging Details:	Carton / Wooden Box
Delivery Time:	10 work days
Payment Terms:	T/T
Supply Ability:	1

Contact Now

Detailed Product Description

Usage:	Inflation Kit	Product Insulation:	Customized
Function:	Assists In The Use And Maintenance Of SF6 Gas Equipment	Convenience:	Provides Convenience In Handling And Using SF6 Gas
Package Contents:	Varies Depending On Specific Accessory	Case Dimensions:	60×40×25 Cm (L×W×H, Approximate)
HOSE:	DN8 (1/4") Inner Diameter, 5m Length
Highlight:	SF6 Accessories Pressure Regulator , Aluminum SF6 Accessories , SF6 gas pressure regulator

SF6 Gas Inflation Kit KSCQ-4 – Pressure Regulator System with Hose & Connector Set

Core Functionality

Engineered for seamless SF6 gas transfer, this kit enables controlled charging from cylinders to equipment via a precision pressure regulator. Tailored for GIS installations and medium-pressure applications, it ensures safe, regulated inflation across industrial environments with dual-range pressure management.

Model Selection Criteria

GIS Systems: Choose 0-1 MPa low-pressure regulator configuration
Medium-Pressure Equipment: Opt for 0-0.3 MPa (0-3 bar) pressure range
Note: Specify operational pressure requirements during ordering for optimized performance.

System Components Table

Component	Specification
Pressure Regulator	1 unit (dual-range selectable)
DN8 Reinforced Hose	5m length, rubber construction
Impact-Resistant Case	1 unit (portable design)
DN20 Self-Sealing Connector	1 unit (inflation port)
Cylinder Inlet Fitting	Standard CGA350 compatible (customizable),G5/8"(china)
Dual-Range Pressure Gauge	Inlet/outlet monitoring

Technical Specifications Table

Parameter	Specification
Model	KSCQ-4
Application Scope	SF6 inflation for GIS/medium-pressure devices
Regulator Pressure Ranges	Low: 0-1 MPa / Medium: 0-0.3 MPa (0-3 bar)
Hose Specifications	DN8 (1/4") inner diameter, 5m length
Inlet Working Pressure	Up to 10 MPa (cylinder side)
Operational Temperature	-20°C to +60°C
Case Dimensions	60×40×25 cm (L×W×H, approximate)
System Weight	8 kg (approximate)
