ODM SF6 Management Inflation Kit Pressure Gauge & Safety Valve System

Large Image : ODM SF6 Management Inflation Kit Pressure Gauge & Safety Valve System

Product Details:

Place of Origin:	Shanghai
Brand Name:	KSTONE
Certification:	ISO9000
Model Number:	KSCQ-5G

Payment & Shipping Terms:

Minimum Order Quantity:	10
Price:	$2000-$100000
Packaging Details:	Carton / Wooden Box
Delivery Time:	7-10 work days
Payment Terms:	T/T
Supply Ability:	1000

Contact Now

Detailed Product Description

Product Color:	Silver	Product Code:	SF6-ACC
Product Usage:	Gas Insulated Switchgear	Product Features:	High Sensitivity, Easy To Use, Durable
Product Material:	Stainless Steel	Product Compatibility:	Compatible With SF6 Gas Detectors
Product Origin:	China	Product Type:	Accessories
Product Function:	Leak Detection And Monitoring	Product Package:	Individual Box
Product Weight:	1.5 Lbs	Product Certification:	CE, RoHS
Highlight:	ODM sf6 management , sf6 management Valve , ODM sf6 pressure gauge

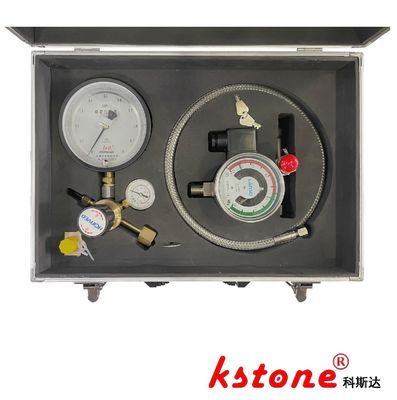

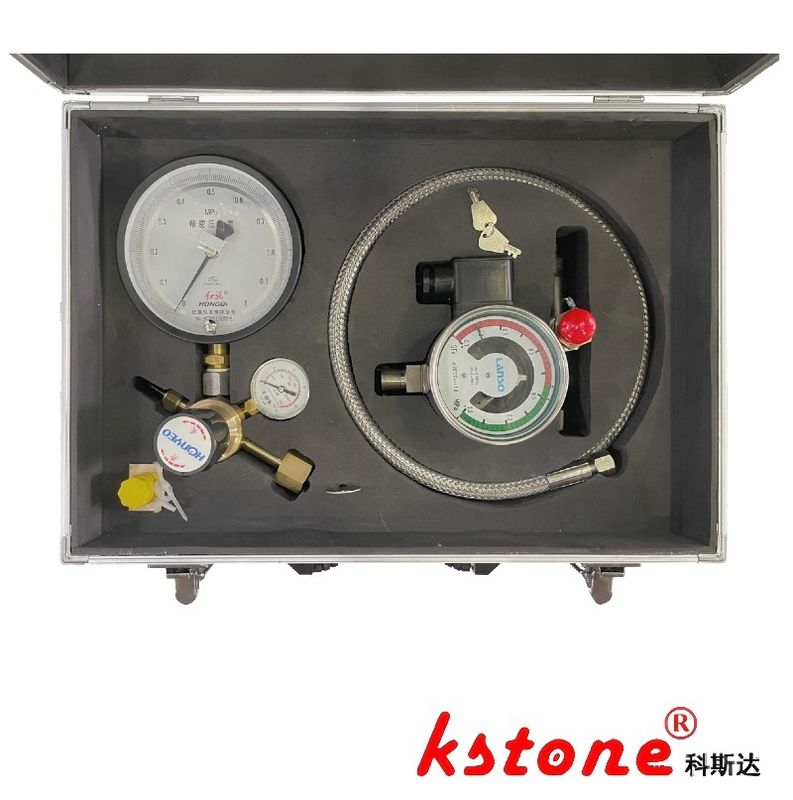

High-Precision SF6 Inflation Kit KSCQ-5G – Pressure Gauge & Safety Valve System

Operational Overview

This precision inflation set facilitates controlled SF6 gas transfer from cylinders to GIS systems via a pressure regulator, inflation hose, and density relay. Comprising a high-precision pressure gauge, safety valve (5.5bar/9.8bar), and industrial-grade components, it ensures accurate pressure management and system protection during gas charging operations.

System Configuration

Component	Specification
Pressure Regulator	1 unit (adjustable range)
High-Precision Gauge	0.25-class accuracy, 0-10 bar range
Safety Valve	5.5bar or 9.8bar pressure relief
DN8 Inflation Hose	5m length, reinforced rubber
Density Relay	SF6 density monitoring device
Portable Protection Case	Impact-resistant, foam-lined interior

Technical Specifications

Parameter	Standard Configuration
Model	KSCQ-5G
Application	SF6 gas charging for GIS systems
Pressure Gauge Accuracy	0.25 class (±0.025bar @ full scale)
Safety Valve Options	5.5bar (79.8psi) / 9.8bar (142psi)
Hose Working Pressure	Up to 15bar (217.5psi)
Temperature Range	-20°C to +60°C
Case Dimensions	600×400×250mm (L×W×H)

Functional Features

Dual Safety Mechanism: Pressure regulator + safety valve for overpressure protection
Precision Monitoring: 0.25-class gauge enables accurate density control
Universal Compatibility: Standard fittings for most SF6 cylinder connections

Tag:

Contact Person: Ms. Jin

Tel: 15000093078
