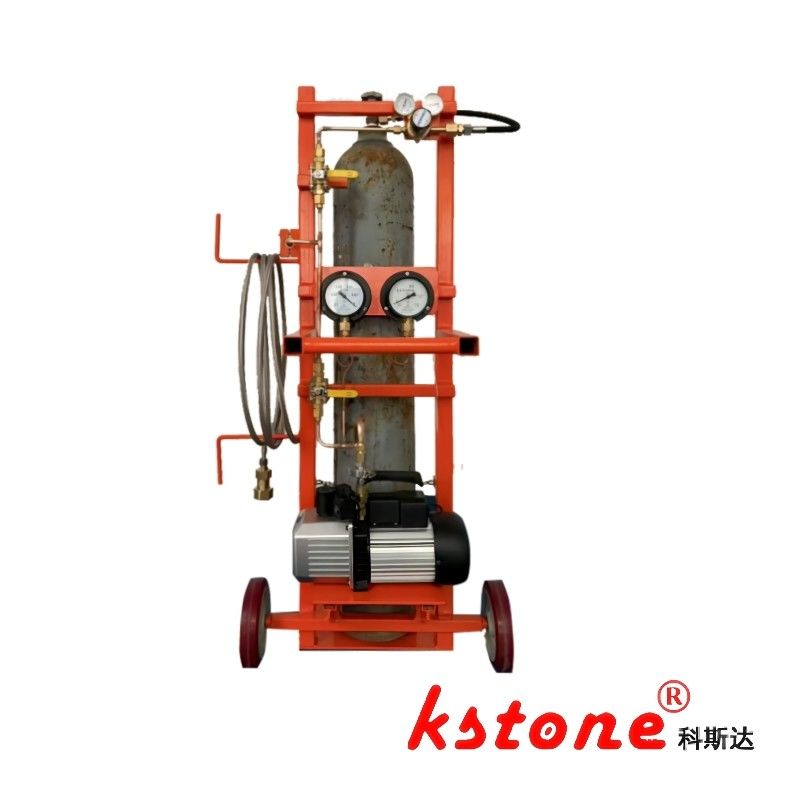

220V 1.5KW Mobile SF6 Vacuum Pump Gas Charging Electrical Equipment

220V 1.5KW Mobile SF6 Vacuum Pump Gas Charging Electrical Equipment
220V 1.5KW Mobile SF6 Vacuum Pump Gas Charging Electrical Equipment

Large Image :  220V 1.5KW Mobile SF6 Vacuum Pump Gas Charging Electrical Equipment

Product Details:
Place of Origin: Shanghai
Brand Name: KSTONE
Certification: ISO9000
Model Number: KSCZ-15C
Payment & Shipping Terms:
Minimum Order Quantity: 5
Price: $2000-$100000
Packaging Details: Carton / Wooden Box
Delivery Time: 45 days
Payment Terms: T/T
Supply Ability: 1000 per year
Contact Now
Detailed Product Description
Features: High Vacuum Degree, Compact Design, Easy To Operate Voltage: 220V
Power: 1.5KW Power Source: Electric
Dimensions: 500mm X 400mm X 600mm Flow Rate: 10m3/h
Ultimate Vacuum: 0.05mbar Material: Stainless Steel
Weight: 50kg Model: Vacuum Pump
Inlet Port Size: DN25 Application: Vacuuming SF6 Gas In High Voltage Electrical Equipment
Highlight:

1.5KW SF6 Vacuum Pump

,

220V SF6 Vacuum Pump

,

SF6 mobile vacuum pump

SF6 Vacuum Inflating Trolley – 15m³/h Pump, Stainless Hose, Pressure Regulator – Mobile Gas Charging KSCZ-15C



Used for recharging SF6 gas in the gas chamber
Can be used as a gas cylinder truck for mobility, equipped with stainless steel armored hoses
Equipped with inflation pressure regulator and steel cylinder weighing
Equipped with a vacuum pump with a speed of 15m ³/h



Basic configuration:

Pointer Display Table 0 MPa - 1.6 MPa
Vacuum Gauge Range 0.1 - 10000 Pa
Cylinder Weighing Range 0 - 150 kg
SF6 Regulator Outlet Pressure -1 - 1.6 MPa
Stainless Steel Armored Hose DN8/6m, 1 piece
SF6 Cylinder Connector G5/8
Cylinder Connection Hose DN8/0.3m stainless steel armored hose
Optional: Cylinder Heating Available (optional, removable)
Optional: Cylinder Weighing Available (optional, removable)
Dimensions (L×W×H) 600×570×1405 mm
Weight 62 kg
