Electric Vacuum SF6 Gas Filling Device For Industrial Gas Management

Electric Vacuum SF6 Gas Filling Device For Industrial Gas Management
Electric Vacuum SF6 Gas Filling Device For Industrial Gas Management

Large Image :  Electric Vacuum SF6 Gas Filling Device For Industrial Gas Management

Product Details:
Place of Origin: Shanghai
Brand Name: KSTONE
Certification: ISO9000
Model Number: KSCZ-15C
Payment & Shipping Terms:
Minimum Order Quantity: 5
Price: $2000-$100000
Packaging Details: Carton / Wooden Box
Delivery Time: 45 days
Payment Terms: T/T
Supply Ability: 1000 per year
Contact Now
Detailed Product Description
Model: Vacuum Pump Inlet Port Size: DN25
Application: Vacuuming SF6 Gas In High Voltage Electrical Equipment Type: Electric
Frequency: 50Hz/60Hz Max Flow Rate: 50L/s
Max Vacuum: 10Pa Outlet Port Size: DN25
Highlight:

Vacuum sf6 gas filling device

,

Electric sf6 gas filling device

,

sf6 gas management Device

KSCZ-15C SF6 Vacuum Inflating Trolley

Engineered for industrial SF6 gas management, the KSCZ-15C trolley integrates a 15m³/h vacuum pump, stainless steel armored hoses, and a precision pressure regulator for mobile gas charging. Ideal for refilling switchgear chambers, this trolley combines portability with leak-proof connectivity via its integrated G5/8 stainless steel hosing system. The built-in inflation pressure regulator and cylinder weighing mechanism ensure accurate gas volume control, while the 15m³/h pump enables efficient chamber evacuation. Its mobile design facilitates easy deployment across industrial sites, making it a versatile solution for SF6 gas refilling operations.

Basic Configuration

  • Pressure Display:0-1.6 MPa pointer gauge
  • Vacuum Measurement:0.1-10000 Pa gauge range
  • Cylinder Weighing:0-150 kg capacity
  • Regulator Outlet:-1 to 1.6 MPa pressure range
  • Standard Hosing:1× DN8/6m stainless steel armored hose
  • Cylinder Connector:G5/8 thread interface
  • Connecting Hose:1× DN8/0.3m stainless steel armored hose

Optional Upgrades

  • Removable cylinder heating system
  • Upgradable cylinder weighing module

Technical Specifications

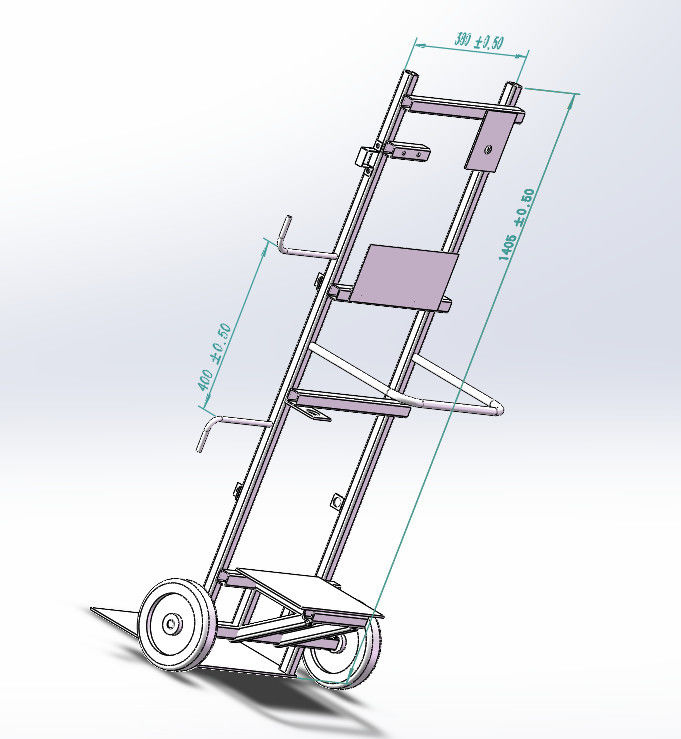

  • Dimensions:600×570×1405 mm (L×W×H)
  • Net Weight:62 kg

Technical Parameter Table

Parameter
Description
Model
KSCZ-15C
Pump Capacity
15m³/h vacuum pump
Hose Configuration
DN8 stainless steel armored hose (6m main hose + 0.3m connecting hose)
Pressure Regulation
-1 to 1.6 MPa (outlet pressure range)
Vacuum Gauge Range
0.1 - 10000 Pa
Cylinder Weighing Range
0 - 150 kg
Connector Type
G5/8 thread for SF6 cylinders
Physical Dimensions
600×570×1405 mm
Unit Weight
62 kg
Optional Features
Removable cylinder heating & advanced weighing systems
