DN20 Vacuum SF6 Gas Refilling Device Management 380V 50Hz

DN20 Vacuum SF6 Gas Refilling Device Management 380V 50Hz
DN20 Vacuum SF6 Gas Refilling Device Management 380V 50Hz

Large Image :  DN20 Vacuum SF6 Gas Refilling Device Management 380V 50Hz

Product Details:
Place of Origin: Shanghai
Brand Name: KSTONE
Certification: ISO9000
Model Number: KSCZ-1080/300
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: $2000-$100000
Packaging Details: Carton / Wooden Box
Delivery Time: 60 days
Payment Terms: T/T
Supply Ability: 10 per year
Contact Now
Detailed Product Description
Flow Rate: 50L/s Frequency: 50/60Hz
Ultimate Pressure: 0.05mbar Power Source: Electricity
Power: 1.5kW Inlet Port: KF25
Type: Electric Outlet Port: KF25
Highlight:

DN20 sf6 gas refilling device

,

380V sf6 gas refilling device

,

sf6 management Device

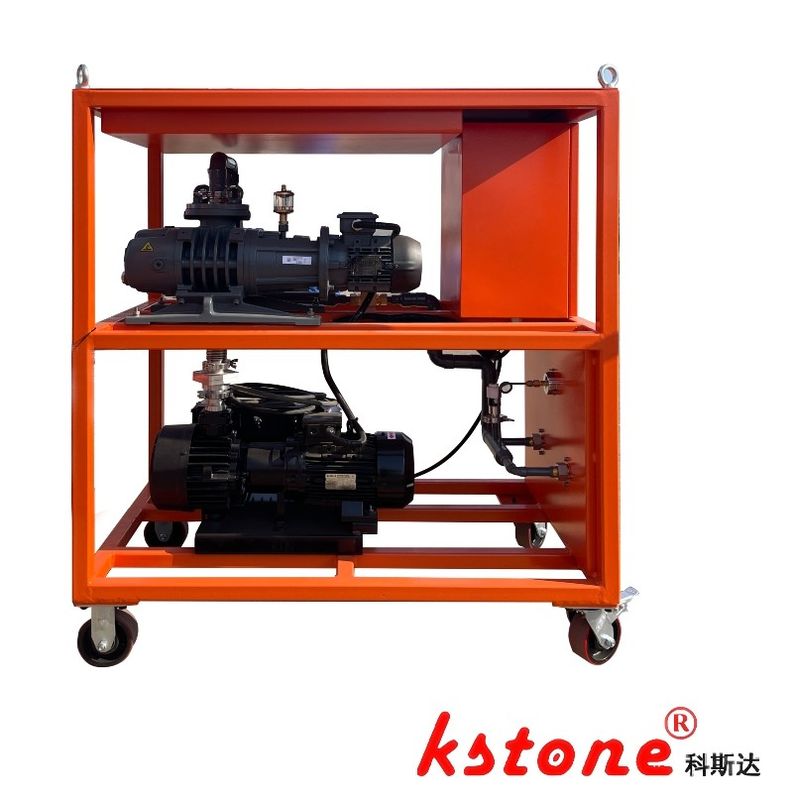

High-Efficiency Large Vacuum System - Model KSCZ-1080/300

Designed for industrial scenarios requiring extreme vacuum conditions, the KSCZ-1080/300 integrates a 1080 m³/h Roots pump and 300 m³/h front-stage pump. Its anti-backflow oil mechanism prevents contamination, while dual M27 threaded ports enable multi-channel pumping. The system achieves an ultimate vacuum of 6×10⁻² Pa, operating on 380V AC 50Hz power. Standard accessories include three 10m DN20 pipelines with M36 threads. Customers can choose premium pumps from Leybold/Busch or cost-effective Chinese models, with customizable pipeline length and quantity to fit project needs.

Technical Parameters Table

Parameter Description
Model KSCZ-1080/300
Pump Configuration 1080 m³/h Roots pump + 300 m³/h front-stage pump
Anti-Backflow Protection Oil-based design to prevent contamination
Valve Ports 2× M27 threaded ports for multi-channel operation
Ultimate Vacuum 6×10⁻² Pa
Power Supply 380V AC, 50Hz
Standard Accessories 3×10m DN20 pipelines (M36 threads)
Pump Brand Options Leybold, Busch, or Made-in-China models
Pipeline Customization Adjustable quantity and length according to requirements
