Adjustable Leybold Dilo SF6 Vacuum Pump Cart 25mm

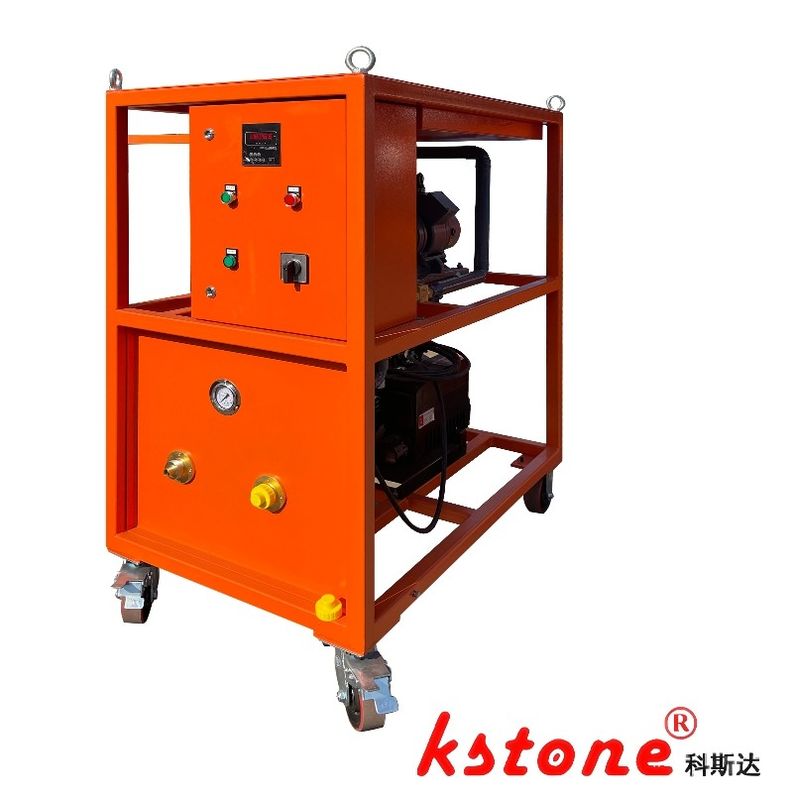

Large Image : Adjustable Leybold Dilo SF6 Vacuum Pump Cart 25mm

Product Details:

Place of Origin:	Shanghai
Brand Name:	KSTONE
Certification:	ISO9000
Model Number:	KSCZ-1080/300

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	$2000-$100000
Packaging Details:	Carton / Wooden Box
Delivery Time:	60 days
Payment Terms:	T/T
Supply Ability:	10 per year

Contact Now

Detailed Product Description

Voltage:	220V	Outlet Diameter:	25mm
Model:	Vacuum Pump	Max Vacuum:	-0.1MPa
Inlet Diameter:	25mm	Dimensions:	500mm X 300mm X 400mm
Max Flow Rate:	50L/min	Weight:	20kg
Highlight:	Adjustable SF6 Vacuum Pump , Leybold SF6 Vacuum Pump , 25mm dilo sf6 cart

High-Performance Large Vacuum Unit - Model KSCZ-1080/300

Engineered for industrial applications demanding deep vacuum environments, the KSCZ-1080/300 vacuum system combines a 1080 m³/h Roots pump with a 300 m³/h front-stage pump. Equipped with anti-backflow oil safeguards to prevent contamination, the unit features dual M27 valve ports for multi-channel pumping, achieving an ultimate vacuum of 6×10⁻² Pa. Operating on a 380V AC 50Hz power supply, it includes three 10m DN20 pipelines (M36 threads) as standard. Customers can select pumps from premium brands like Leybold or Busch, or opt for domestic Chinese models. Both pipeline quantity and length are fully customizable to meet project-specific requirements.

Technical Specifications Table

Parameter	Description
Model	KSCZ-1080/300
Pump System	1080 m³/h Roots pump + 300 m³/h front-stage pump
Anti-Backflow Protection	Oil-based design for contamination prevention
Valve Connections	2× M27 threaded ports for multi-channel integration
Ultimate Vacuum	6×10⁻² Pa
Power Supply	380V AC, 50Hz
Standard Accessories	3×10m DN20 pipelines (M36 threads)
Pump Brand Options	Leybold, Busch, or Made-in-China models
Pipeline Customization	Adjustable quantity and length
