OEM 220V Portable Refrigerant Sf6 Gas Recovery Machine Steel Cylinder Filling

Large Image : OEM 220V Portable Refrigerant Sf6 Gas Recovery Machine Steel Cylinder Filling

Product Details:

Place of Origin:	Shanghai
Brand Name:	KSTONE
Certification:	ISO9000
Model Number:	KSLF-3Y/T

Payment & Shipping Terms:

Minimum Order Quantity:	5
Price:	$2000-$100000
Packaging Details:	Carton / Wooden Box
Delivery Time:	45 days
Payment Terms:	T/T
Supply Ability:	100 per year

Contact Now

Detailed Product Description

Application:	Gas Recovery And Purification	Weight:	≤ 500kg
Working Pressure:	≤ 0.5MPa	Storage Capacity:	1000L
Recovery Rate:	99.9%	Power Supply:	AC 220V, 50Hz
Gas Type:	Sulfur Hexafluoride (SF6)	Power Consumption:	≤ 1.5kW
Warranty:	1 Year	Operating Temperature:	0-50℃
Purification Rate:	99.99%	Dimensions:	1200mm X 800mm X 1500mm
Highlight:	220V sf6 gas recovery , sf6 gas recovery Machine , 220V refrigerant gas recovery machine

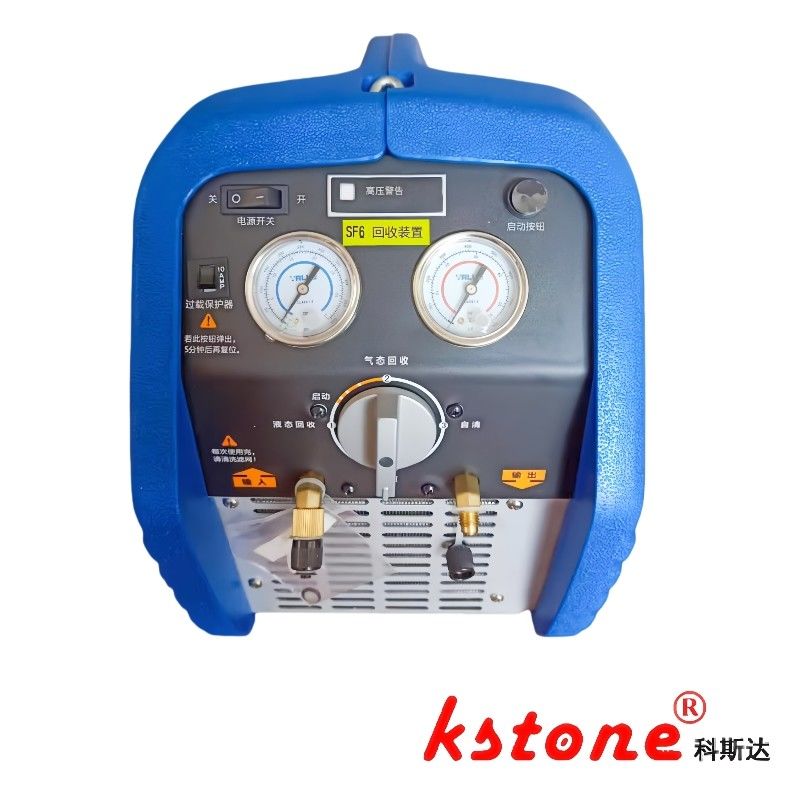

Portable SF6 Recovery Device , Micro Recovery , Steel Cylinder Filling, Liquid Storage , KSLF-3Y/T

This equipment is only used for the recovery of SF6 in 10-35kV medium-voltage switchgear. It is recommended to be used on-site, and it is generally not recommended for frequent use in the workshop.

Category	Details
Model	KSLF-3Y/T
Compressor Displacement	2.8m³/h
Compressor	made in china (Imported option available)
Maximum Discharge Pressure	5.5MPa
Maximum Suction Pressure	0.4MPa
Allowable Discharge Pressure	3.8MPa
Cooling Method	Air cooling
Recovery	Final pressure ≤ 53Kpa. Gas recovery speed: 20 - 30 kg/h. Liquid recovery: 70 - 80 kg/h
Storage	In liquid state, it can be directly pressed into the cylinder for storage. The total weight of the whole machine is less than 25 kg (excluding the gas cylinder)
Noise	60DB
Dimensions	Length 500 * Height 400 * Width 300 (Estimated, subject to actual delivery)
Power	1KW
Power Supply	220V

Attachment List

Name	Technical Parameters or Description	Quantity
Compressor (Built-in)	Maximum pressure 3.5MPa, displacement 2.8m³/h	1
Interface Pipeline Dedicated for Inflatable Cabinets	Can be customized according to customer needs	1
Interface Pipeline for Connecting Gas Cylinders	Standard configuration	1
Aluminum Alloy Outer Box	Portable outer box	1

Preliminary:
A spare gas tank
Self-sealing valves that can be connected to electrical equipment

Operation:
Left interface connects electrical equipment
Right interface connects electrical equipment
Connect power supply AC220
Turn on the power switch
Gaseous recovery is generally used.
