1.5kW Recycling SF6 Gas Recovery Equipment For Sulfur Hexafluoride Treatment

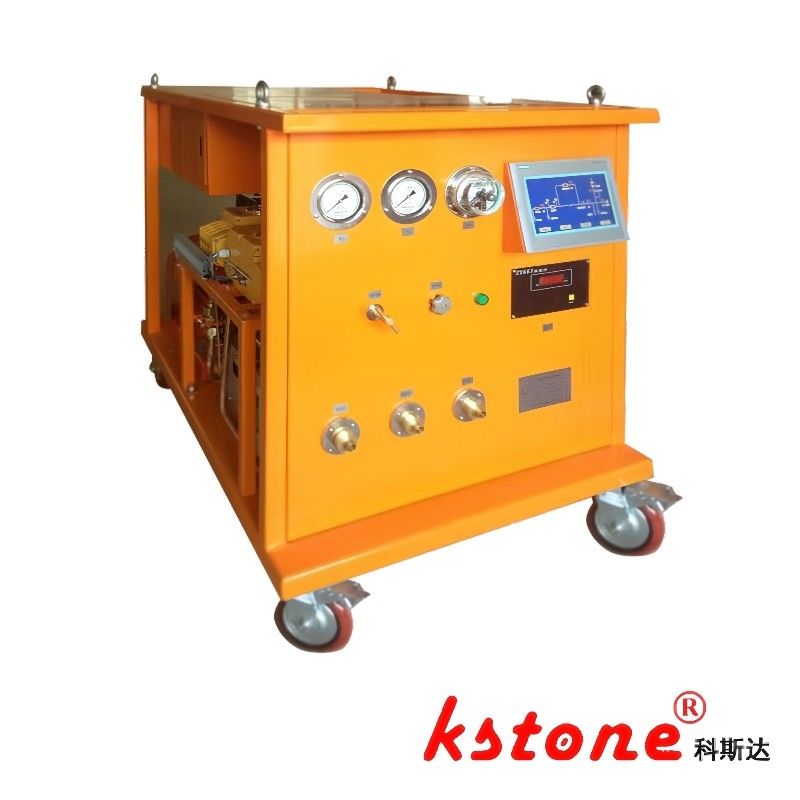

Large Image : 1.5kW Recycling SF6 Gas Recovery Equipment For Sulfur Hexafluoride Treatment

Product Details:

Place of Origin:	Shanghai
Brand Name:	KSTONE
Certification:	ISO9000
Model Number:	KSLH-6WY20-54-300Z

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	$2000-$100000
Packaging Details:	Carton / Wooden Box
Delivery Time:	60 days
Payment Terms:	T/T
Supply Ability:	10 per year

Contact Now

Detailed Product Description

Product Type:	Gas Recovery Equipment	Dimensions:	800mm X 600mm X 1200mm
Compressor Power:	1.5kW	Vacuum Degree:	≤10Pa
Compressor:	Oil-free Compressor	Operating Temperature:	0-40℃
Vacuum Pump:	Rotary Vane Pump	Operating Pressure:	≤0.4MPa
Highlight:	1.5kW sf6 gas recovery equipment , Recycling sf6 gas recovery equipment , Sulfur Hexafluoride sf6 gas recycling

SF6 Fully Automatic Recycling Device with Oil-free Compressor and Negative Pressure Recovery - Model KSLH-6WY20-54-300Z

As a drafting unit for the industry standard "DL/T1353 - 2024 Technical Specification for Sulfur Hexafluoride Treatment System" issued by the National Energy Administration of China, our company specializes in customized SF6 recovery devices. These devices are classified by functions such as recycling, vacuuming, and inflation, with configurations tailored to customer needs—including negative pressure recycling, oil - free compressors, compressor speed, liquid storage tank capacity, freezing functions, moisture/particle filtration, and full - automation. Below is an introduction to a compact fully automatic recycling device featuring negative pressure recovery, oil - free operation, and integrated suction - inflation capabilities (Model: KSLH - 6WY20 - 54 - 300Z), equipped with a 6m³/h oil - free high - pressure compressor, 20m³/h negative pressure compressor, 54m³/h vacuum pump, 300L storage tank, and fully automated operation.

Main Technical Specifications

1. Device Performance Parameters

Parameter	Description
Type	High - pressure liquefaction, air - cooled, hand - push mobile
Ambient Temperature	-10℃～40℃
Recycling	Initial pressure: ≤30 bar Final pressure: ≤-0.09 MPa
Inflation	Initial pressure: ≤133 bar Final pressure: ≤10 MPa
Ultimate Vacuum	≤5 Pa
Annual Leakage Rate	≤0.5%
Recycled SF6 Gas Purity	Moisture content: ≤60 (PPM/V) Oil content: 0 (PPM/G)
Storage Container	Storage method: Liquid Pressure: 39 bar Volume: 350 L Liquid storage capacity: 350 kg Liquefaction method: High - pressure liquefaction
Dry Filter Regeneration	Vacuum heating activation regeneration
Power Supply	3Φ 380V 50HZ
Total Power	≤7 (kW)
Noise Level	≤75 A (dB)
Equipment Weight	≤1000 kg

2. Main Component Performance Parameters

Component	Parameter	Value
SF6 Compressor	Form	Air - cooled piston
	Theoretical Displacement	6 m³/h
	Maximum Exhaust Pressure	50 bar
	Allowable Exhaust Pressure	47 bar
	Minimum Suction Pressure	-5 mbar
	Maximum Suction Pressure	3 bar
	Maximum Exhaust Temperature	130℃
	Lubricant	None
	Power	2.2 kW
Vacuum Pump	Pumping Speed	63 m³/h
	Ultimate Pressure	≤0.1 mbar
	Power	2.2 kW
Storage Container	Category	TYPE TWO
	Design Pressure	39 bar
	Design Temperature	100℃
	Capacity	350 L
	Liquid Storage Capacity	350 kg
