500L-2000L SF6 Recovery System Portable R134 Recovery Machine

Large Image : 500L-2000L SF6 Recovery System Portable R134 Recovery Machine

Product Details:

Place of Origin:	Shanghai
Brand Name:	KSTONE
Certification:	ISO9000
Model Number:	KSLH-110Y/160-1200WZ

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	$2000-$100000
Packaging Details:	Carton / Wooden Box
Delivery Time:	45 days
Payment Terms:	T/T
Supply Ability:	10 per year

Contact Now

Detailed Product Description

Features:	High Efficiency, Low Noise, Easy Operation	Capacity:	100kg/h
Weight:	≤800kg	Product Type:	Gas Recovery Machine
Vacuum Pump Capacity:	15m3/h	Power Supply:	AC 220V, 50Hz
Power Consumption:	≤ 1000W	Filling Pressure:	≤ 0.8MPa
Operating Temperature:	0-50℃	Storage Capacity:	10L
Filling Speed:	≤ 10L/min
Highlight:	500L SF6 Recovery System , R134 SF6 Recovery System , SF6 portable r134 recovery machine

High-Capacity SF6 Recovery System KSLH-110Y for GIS/GIL

Industry Standard Setting

As the primary author of China's DL/T1353-2024 technical standard for SF6 treatment systems, our solutions establish global industry benchmarks. SF6 recovery equipment is custom-engineered with configurable features: negative-pressure recycling, oil-free/lubricated compression options, variable storage capacities (500L-2000L), and fully automated PLC control.

System Overview

The KSLH-110Y/160-1200WZ high-capacity automated system is optimized for 550kV insulation pot withstand voltage testing in power grids. It integrates an 110m³/h oil-free air-cooled piston main compressor, 160m³/h negative-pressure compressor (0.5MPa suction capacity), 63m³/h pipeline vacuum pump (≤5Pa ultimate vacuum), and 1200L 304 stainless steel horizontal storage tank for efficient high-voltage SF6 management.

Technical Specifications Table

Component	Specification
Main Compressor	110m³/h, oil-free, air-cooled piston
Negative-Pressure Compressor	160m³/h, 0.5MPa suction pressure
Pipeline Vacuum Pump	63m³/h, ultimate vacuum ≤5Pa
Liquid Storage Tank	1200L horizontal, 304 stainless steel

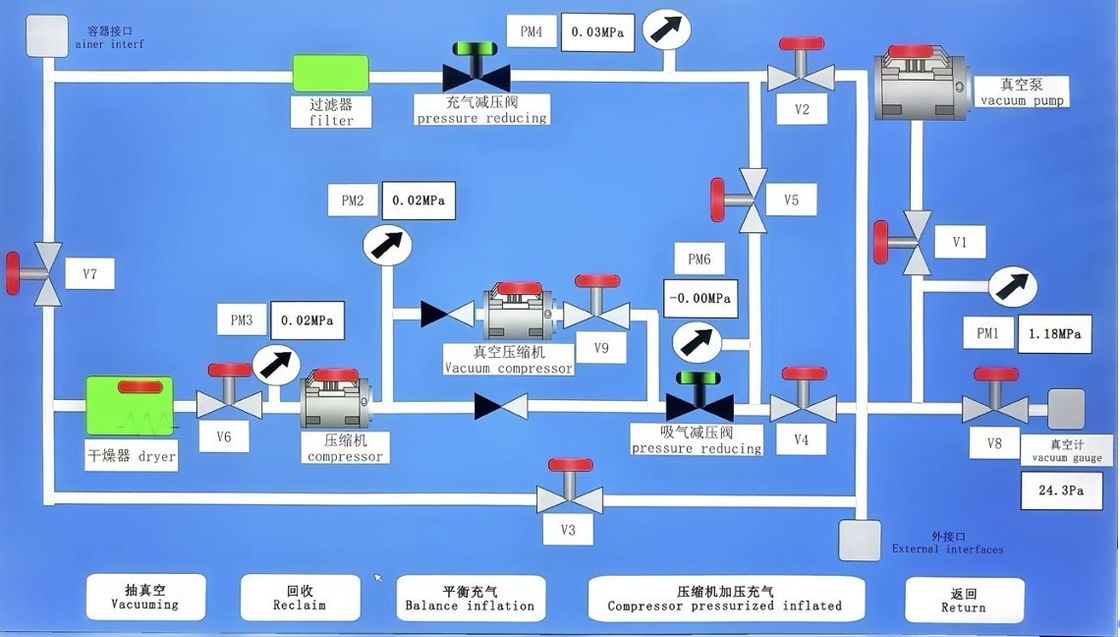

Control System	PLC-based with HMI touchscreen interface
Filtration Module	0.1μm particle filter, 3ppm moisture trap
Power Supply	3Φ 380V 50Hz, 45kW total power capacity

Custom Configuration Options

Compression Systems:
- Oil-free compressors for contamination-free recovery
- Lubricated compressors for high-pressure applications
Storage Solutions:
- 500L-2000L stainless steel tank volume variants
Functional Add-ons:
- Freezing dehydration units for moisture removal
- Gas purity analyzers (0.1-1000ppm precision)
Mobility Options:
- Trailer-mounted designs for field operations
- Skid-based configurations for fixed installations

Compliance & Certifications

Compliant with DL/T1353-2024 (China) and IEC 62271-403 (international)
Rated for GIS/GIL systems up to 1100kV voltage class
ISO 14001:2015 certified environmental management system
CE marked for European market compliance
