GIS GIL Air Cooled Refrigerant SF6 Recovery System Unit High Capacity

Large Image : GIS GIL Air Cooled Refrigerant SF6 Recovery System Unit High Capacity

Product Details:

Place of Origin:	Shanghai
Brand Name:	KSTONE
Certification:	ISO9000
Model Number:	KSLH-110Y/160-1200WZ

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	$2000-$100000
Packaging Details:	Carton / Wooden Box
Delivery Time:	45 days
Payment Terms:	T/T
Supply Ability:	10 per year

Contact Now

Detailed Product Description

Filling Speed:	≤ 10L/min	Compressor:	Oil-free
Cooling System:	Air-cooled	Dimensions:	1200mm800mm1500mm
Type:	Gas Recovery System	Model:	Recovery
Operating Pressure:	≤0.4Mpa	Recovery Rate:	99.9%
Application:	Recovery And Purification Of SF6 Gas	Vacuum Pump:	Roots Pump
Highlight:	GIS SF6 Recovery System , Air Cooled SF6 Recovery System , SF6 refrigerant gas recovery unit

High-Capacity SF6 Recovery System KSLH-110Y for GIS/GIL Applications

Industry Standard Leadership

As the lead developer of China's DL/T1353-2024 technical specification for SF6 treatment systems, our solutions set international industry standards. The SF6 recovery equipment is custom-engineered with configurable features, including negative-pressure recycling, oil-free/lubricated compression choices, variable storage capacities (500L–2000L), and fully automated PLC control.

System Overview

The KSLH-110Y/160-1200WZ high-capacity automated system is optimized for 550kV insulation pot withstand voltage testing in power grid applications. It integrates an 110m³/h oil-free air-cooled piston main compressor, a 160m³/h negative-pressure compressor (0.5MPa suction capacity), a 63m³/h pipeline vacuum pump (≤5Pa ultimate vacuum), and a 1200L 304 stainless steel horizontal storage tank for efficient high-voltage SF6 management.

Technical Specifications Table

Component	Specification
Main Compressor	110m³/h, oil-free, air-cooled piston
Negative-Pressure Compressor	160m³/h, 0.5MPa suction pressure
Pipeline Vacuum Pump	63m³/h, ultimate vacuum ≤5Pa
Liquid Storage Tank	1200L horizontal, 304 stainless steel

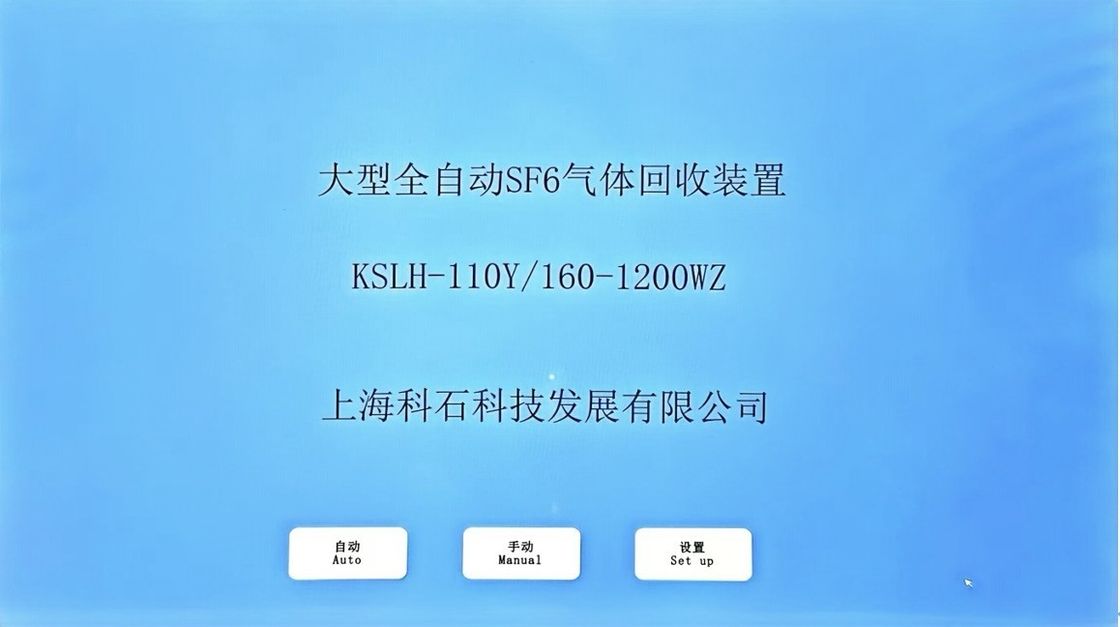

Control System	PLC-based with HMI touchscreen interface
Filtration Module	0.1μm particle filter, 3ppm moisture trap
Power Supply	3Φ 380V 50Hz, 45kW total power capacity

Custom Configuration Options

Compression Systems

Oil-free Compressors: For contamination-free SF6 recovery
Lubricated Compressors: Suited for high-pressure applications

Storage Solutions

500L to 2000L stainless steel tank volume variations

Functional Add-ons

Freezing dehydration units for efficient moisture removal
Gas purity analyzers (0.1–1000ppm precision range)

Mobility Options

Trailer-mounted designs for on-site operations
Skid-based configurations for fixed installations

Compliance & Certifications

Compliant with DL/T1353-2024 (China) and IEC 62271-403 (international standards)
Rated for GIS/GIL systems up to 1100kV voltage class
ISO 14001:2015 certified environmental management system
CE marked for compliance with European market requirements
