Portable r134A SF6 Recovery System Machine 110m³/H 1200L Oil Free Compressor

All Products

SF6 Recovery System (8)

SF6 Gas Tester (6)

SF6 Leak Detector (21)

Gas Leak Detector (9)

Dew Point Meter (6)

Online Monitoring System (7)

Dry Air Equipment (4)

SF6 Vacuum Pump (10)

Gas Mixing Unit (3)

Refrigerant Recycling Machine (1)

Refrigerant Leak Detector (2)

SF6 Gas Purification (1)

SF6 Accessories (21)

Partial Discharge Detector (2)

I'm Online Chat Now

Portable r134A SF6 Recovery System Machine 110m³/H 1200L Oil Free Compressor

Large Image : Portable r134A SF6 Recovery System Machine 110m³/H 1200L Oil Free Compressor

Product Details:

Place of Origin:	Shanghai
Brand Name:	KSTONE
Certification:	ISO9000
Model Number:	KSLH-110Y/160-1200WZ

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	$2000-$100000
Packaging Details:	Carton / Wooden Box
Delivery Time:	45 days
Payment Terms:	T/T
Supply Ability:	10 per year

Contact Now

Detailed Product Description

Features:	High Efficiency, Low Noise, Easy Operation	Working Pressure:	0.5MPa
Application:	Gas Recovery	Vacuum Degree:	≤10Pa
Dimensions:	1200x800x1500mm	Recovery Rate:	99.9%
Noise Level:	≤75dB	Capacity:	100kg/h
Weight:	≤800kg	Product Type:	Gas Recovery Machine
Highlight:	r134A SF6 Recovery System , 1200L SF6 Recovery System , 1200L portable r134a recovery machine

High-Capacity SF6 Recovery Unit KSLH-110Y | 110m³/h Oil-Free Compressor | 1200L Storage | GIS/GIL Maintenance

Industry Standard Leadership

As the principal drafter of China's DL/T1353-2024 technical specification for SF6 treatment systems, our solutions define industrial benchmarks. SF6 recovery equipment is custom-engineered with configurable features: negative-pressure recycling, oil-free compression, variable storage capacities, and fully automated operations.

System Overview

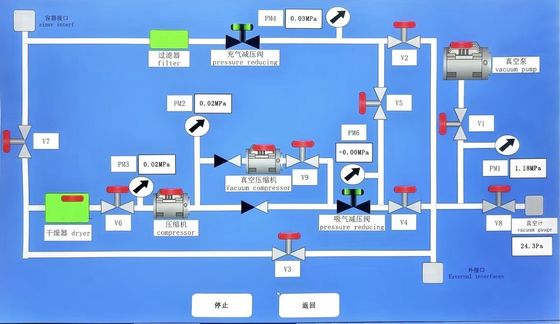

The KSLH-110Y/160-1200WZ high-capacity automated system is optimized for 550kV insulation pot withstand voltage testing. It integrates a 110m³/h oil-free main compressor, 160m³/h negative-pressure compressor (0.5MPa suction), 63m³/h pipeline vacuum pump (≤5Pa ultimate vacuum), and 1200L 304 stainless steel horizontal storage tank for efficient high-voltage SF6 management.

Technical Specifications Table

Component	Specification
Main Compressor	110m³/h, oil-free, air-cooled piston
Negative-Pressure Compressor	160m³/h, 0.5MPa suction pressure
Pipeline Vacuum Pump	63m³/h, ≤5Pa ultimate vacuum
Liquid Storage Tank	1200L horizontal, 304 stainless steel
Control System	PLC-based with HMI touchscreen
Filtration Module	0.1μm particle filter, 3ppm moisture trap
Power Supply	3Φ 380V 50Hz, 45kW total power

Custom Configuration Options

Compression Types: Oil-free / lubricated compressor selections
Storage Capacity: 500L–2000L tank volume variants
Functional Add-ons: Freezing dehydration unit, gas purity analyzer
Mobility Solutions: Trailer-mounted / skid-based transport designs

Compliance & Certifications

Compliant with DL/T1353-2024 and IEC 62271-403 standards
Rated for GIS/GIL systems up to 1100kV voltage class
ISO 14001:2015 environmental management certified
