SF6 Gas Hydrogen Purification System Auto Coil Filtration With 4x Regenerable Molecular Sieves

Large Image : SF6 Gas Hydrogen Purification System Auto Coil Filtration With 4x Regenerable Molecular Sieves

Product Details:

Place of Origin:	Shanghai
Brand Name:	KSTONE
Certification:	ISO9000
Model Number:	KS3000-GL-4-PG

Payment & Shipping Terms:

Minimum Order Quantity:	5
Price:	$2000-$100000
Packaging Details:	Carton / Wooden Box
Delivery Time:	45 days
Payment Terms:	T/T
Supply Ability:	100

Contact Now

Detailed Product Description

Product Packaging:	Standard Export Package	Product Type:	Accessories
Product Application:	Electric Power Industry, Railway Industry, Mining Industry, Chemical Industry	Product Features:	High Efficiency, Easy To Operate, Safe And Reliable
Product Function:	Filling And Recovery Of SF6 Gas	Product Size:	Customized
Product Certification:	ISO9001, CE, RoHS	Product Warranty:	Varies Depending On Manufacturer
Highlight:	SF6 hydrogen purification system , Auto hydrogen purification system , SF6 gas purification system

SF6 Gas Purification System KS3000-GL-4-PG - Auto Coil Filtration with 4x Regenerable Molecular Sieves

Core Functions

Engineered for industrial gas purification, this system efficiently dries non-corrosive gases such as SF6, dry air, and nitrogen. It achieves ≤50ppm moisture content in a single pass through its advanced 4-stage molecular sieve filtration. The regenerable sieves ensure long-term cost-effective operation with minimal maintenance.

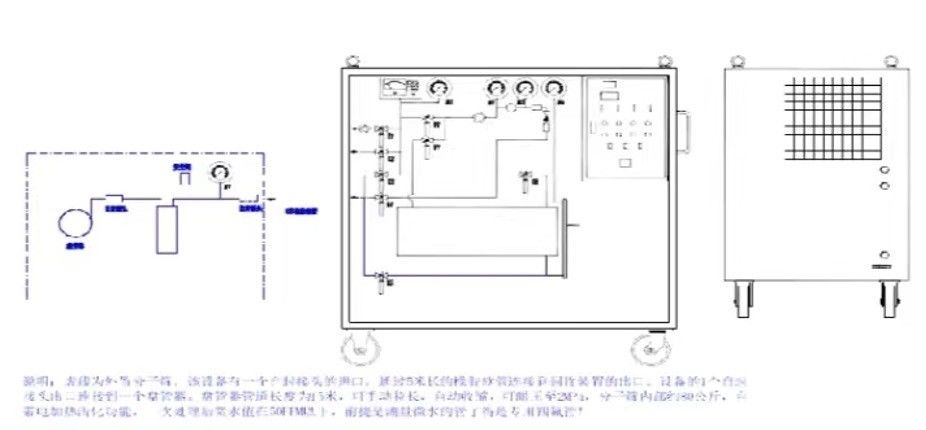

System Architecture

Filtration Unit: Quad molecular sieve configuration for deep moisture removal
Auto Coil Assembly: 15m self-retracting pipeline with 2MPa pressure rating
Thermal Management: 4 heating modules with precision temperature control
Flow Control: Dual inlet/outlet ports with optional DN20 self-sealing valves
Monitoring: Integrated pressure gauge for real-time system feedback

Technical Specifications

Parameter	Specification
Model	KS3000-GL-4-PG
Process Gases	SF6, dry air, nitrogen (non-corrosive)
Moisture Efficiency	≤50ppm after single-pass treatment
Molecular Sieve Capacity	4 regenerable units
Coil Pipeline	15m self-retracting, 2MPa max pressure
Heating Power	4 modules with PID temperature control
Valves	Optional DN20 self-sealing valves
Physical Dimensions	160×50×135 cm (L×W×H)
System Weight	150 kg (approx.)
Operational Pressure	Up to 2MPa
Regeneration Cycle	Fully automated sieve regeneration
