SF6 Gas Purification System ，4x Regenerable Molecular Sieves ，external moisture filtration

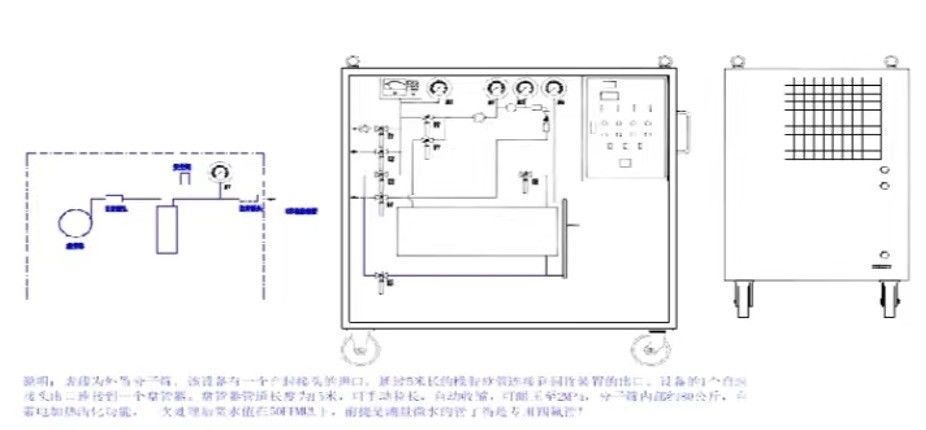

Large Image : SF6 Gas Purification System ，4x Regenerable Molecular Sieves ，external moisture filtration

Product Details:

Place of Origin:	Shanghai
Brand Name:	KSTONE
Certification:	ISO9000
Model Number:	KS3000-GL-4-PG

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	$3500-$3800
Packaging Details:	Wooden Box
Delivery Time:	30 days
Payment Terms:	T/T
Supply Ability:	100

Contact Now

Detailed Product Description

Product Packaging:	Standard Export Package	Product Type:	Accessories
Product Application:	Electric Power Industry, Railway Industry, Mining Industry, Chemical Industry	Product Features:	High Efficiency, Easy To Operate, Safe And Reliable
Product Function:	Filling And Recovery Of SF6 Gas	Product Size:	Customized
Product Certification:	ISO9001, CE, RoHS	Product Warranty:	Varies Depending On Manufacturer
Highlight:	SF6 hydrogen purification system , Auto hydrogen purification system , SF6 gas purification system

model :KS3000-GL-4-PG

Mainly externally connected to the outlet of the recycling device or gas storage tank, with an external filtering component to ensure that the gas and moisture entering the product are qualified;

Core Functions

Mainly externally connected to the outlet of the recycling device or gas storage tank, with an external filtering component to ensure that the gas and moisture entering the product are qualified;

Engineered for industrial gas purification, this system efficiently dries non-corrosive gases such as SF6, dry air, and nitrogen. It achieves ≤50ppm moisture content in a single pass through its advanced 4-stage molecular sieve filtration. The regenerable sieves ensure long-term cost-effective operation with minimal maintenance.

System Architecture

Filtration Unit: Quad molecular sieve configuration for deep moisture removal
Auto Coil Assembly: 15m self-retracting pipeline with 2MPa pressure rating
Thermal Management: 4 heating modules with precision temperature control
Flow Control: Dual inlet/outlet ports with optional DN20 self-sealing valves
Monitoring: Integrated pressure gauge for real-time system feedback

Technical Specifications

Parameter	Specification
Model	KS3000-GL-4-PG
Process Gases	SF6, dry air, nitrogen (non-corrosive)
Moisture Efficiency	≤50ppm after single-pass treatment
Molecular Sieve Capacity	4 regenerable units
Coil Pipeline	15m self-retracting, 2MPa max pressure
Heating Power	4 modules with PID temperature control
Valves	Optional DN20 self-sealing valves
Physical Dimensions	160×50×135 cm (L×W×H)
System Weight	150 kg (approx.)
Operational Pressure	Up to 2MPa
Regeneration Cycle	Fully automated sieve regeneration
